(55.635.AH[01]) - PNEUMATIC DOWN PRESSURE COMPRESSOR HARNESS

Запчасти Case IH 1265 (55.635.AH[01]) - PNEUMATIC DOWN PRESSURE COMPRESSOR HARNESS (55) - ELECTRICAL SYSTEMS

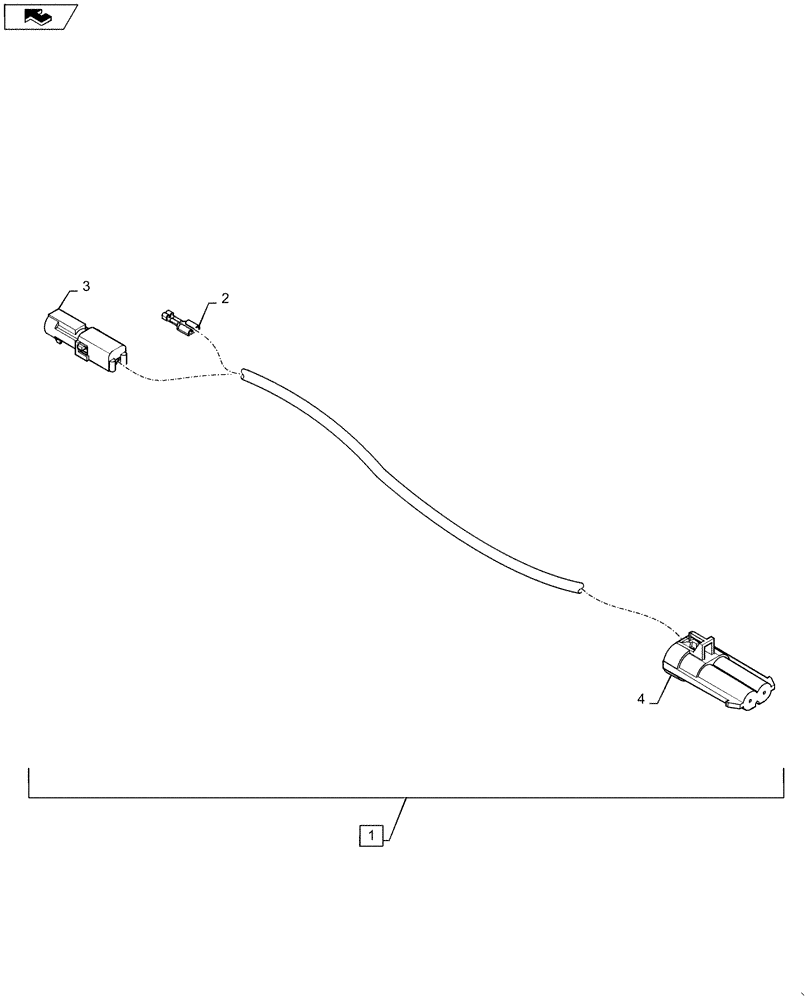

Схема запчастей Case IH 1265 - (55.635.AH[01]) - PNEUMATIC DOWN PRESSURE COMPRESSOR HARNESS (55) - ELECTRICAL SYSTEMS
3
home
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84170858

HARNESS

PNEUMATIC DOWN PRESSURE COMPRESSOR Harness Inl 2 - 4

1шт.

2

225180C1

TERMINAL CONNECTOR,Female, 1.25 - 3 mm2

Power

1шт.

3

87693745

ELEC CONNECTOR,Male, Blade

Ground

1шт.

4

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

Compressor Power

1шт.
