(55.200.AA[14]) - HARNESS, BF LIGHTING, 32/36/48R FFT

Запчасти Case IH 1265 (55.200.AA[14]) - HARNESS, BF LIGHTING, 32/36/48R FFT (55) - ELECTRICAL SYSTEMS

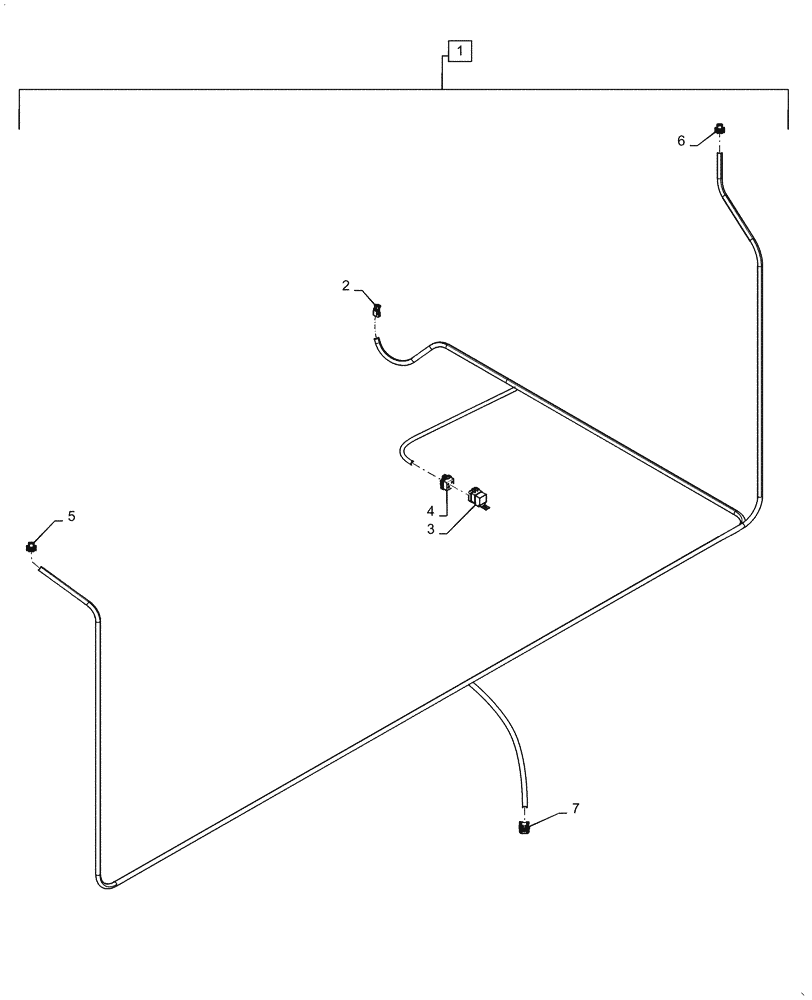

Схема запчастей Case IH 1265 - (55.200.AA[14]) - HARNESS, BF LIGHTING, 32/36/48R FFT (55) - ELECTRICAL SYSTEMS
3
6
7
4
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87493974

HARNESS

BF LIGHTING, 32/36/48R FFT Incl 2 - 7

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

Switch

1шт.

3

293256A2

RELAY,12V

1шт.

4

297910A1

ELEC CONNECTOR,Female, 5 Pin

Relay

1шт.

5

237661A1

ELEC CONNECTOR,Female, 2 Pin

Left BF Light

1шт.

6

237661A1

ELEC CONNECTOR,Female, 2 Pin

Right BF Light

1шт.

7

245485C1

ELEC CONNECTOR,Male, 3 Pin

BF Lights

1шт.
