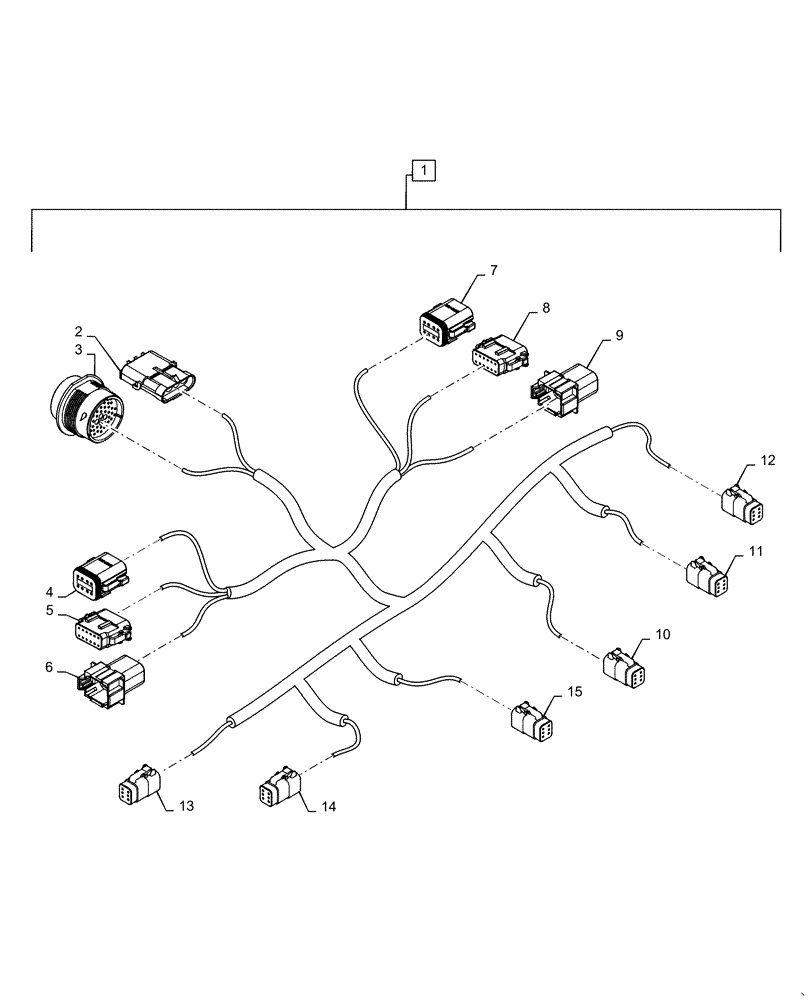

Запчасти Case IH 1265 (55.200.AA[07]) - HARNESS, WIRE, SEED SENSOR 3XR30 CENTER (55) - ELECTRICAL SYSTEMS

1

84539971

WIRE HARNESS

SEED SENSOR 3XR30 CENTER Incl 2 - 15

1шт.

2

87696085

ELEC CONNECTOR

47 Way Row Clutches

1шт.

3

87692802

ELEC CONNECTOR

Seed Sensor Bus

1шт.

4

87700325

ELEC CONNECTOR,Female, 8 Cavities

Left Wing Clutches 2

1шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

Left Wing Seed Sensors

1шт.

6

87700321

ELEC CONNECTOR,Female, 8 Cavities

Left Wing Clutches 1

1шт.

7

87700325

ELEC CONNECTOR,Female, 8 Cavities

Right Wing Clutches 2

1шт.

8

87700156

CONTACT HOUSING,Female, 12 Pole

Right Wing Seed Sensor

1шт.

9

87700321

ELEC CONNECTOR,Female, 8 Cavities

Right Wing Clutches 1

1шт.

10

87700107

ELEC CONNECTOR

Clutch And Seed 17/19

1шт.

11

87700107

ELEC CONNECTOR

Clutch And Seed 18/20

1шт.

12

87700107

ELEC CONNECTOR

Clutch And Seed 19/21

1шт.

13

87700107

ELEC CONNECTOR

Clutch And Seed 14/16

1шт.

14

87700107

ELEC CONNECTOR

Clutch And Seed 15/17

1шт.

15

87700107

ELEC CONNECTOR

Clutch And Seed 16/18

1шт.
