Запчасти Case IH 1265 (55.200.AA[02]) - HARNESS, HITCH, 88/90FT FFT, ISOBUS (55) - ELECTRICAL SYSTEMS

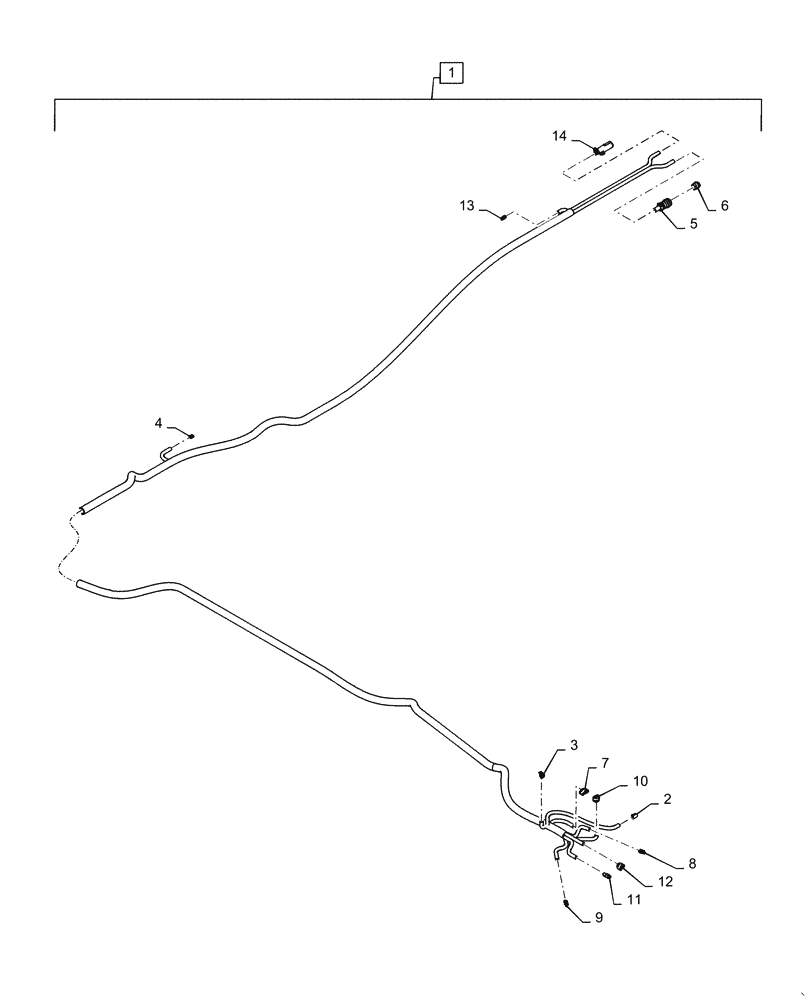

Схема запчастей Case IH 1265 - (55.200.AA[02]) - HARNESS, HITCH, 88/90FT FFT, ISOBUS (55) - ELECTRICAL SYSTEMS
8
7
13
1
11
10
9
5
12
3
14
2
6
4

Артикул

Название

Примечание

Количество

1

87493966

HARNESS

88/90FT FFT, ISOBUS Incl 2 - 14

1шт.

2

225351C1

ELEC CONNECTOR,Female, 6 Pin

Lighting Module

1шт.

3

256348A1

ELEC CONNECTOR,Female, 6 Pin

CAN Bus Terminator

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

Cooler Power

1шт.

5

279043A1

ELEC CONNECTOR,Female, 9 Pin

Tractor ISO

1шт.

6

245043C1

CAP

Dust

1шт.

7

87541127

ELEC CONNECTOR,Female

Lighting

1шт.

8

245482C1

ELEC CONNECTOR,2 Pin

Bulk Fill Agitator Power

1шт.

9

245482C1

ELEC CONNECTOR,2 Pin

Comprssor Power

1шт.

10

87540289

ELEC CONNECTOR,Female

ECU 2

1шт.

11

225294C1

ELEC CONNECTOR,Male, 3 Pin

Hitch Angle

1шт.

12

87540289

ELEC CONNECTOR,Female

ECU 1

1шт.

13

225295C1

ELEC CONNECTOR,Female, 3 Pin

Hitch Angle

1шт.

14

121646C1

TERMINAL CONNECTOR,Female

Tractor Lights

1шт.

Выбрано товаров: 14
