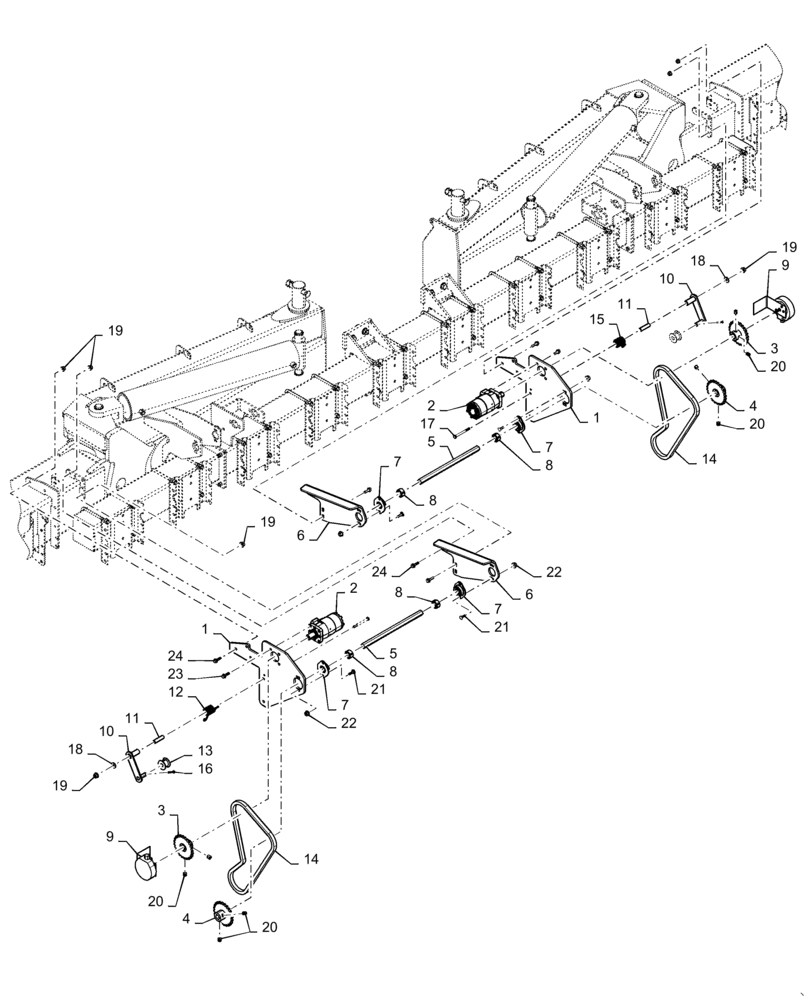

Запчасти Case IH 1265 (35.744.AC[05]) - HYDRAULIC SEED DRIVE 36/22 (35) - HYDRAULIC SYSTEMS

1

84365474

PLATE

Motor Mount Painted

2шт.

2

87752460

HYDRAULIC MOTOR

Seed Drive

2шт.

3

87694455

SPROCKET

24 Tooth

4шт.

4

87503169

SPROCKET

50 Chain 24 Teeth

4шт.

5

84130039

SHAFT

Input 7/8"

2шт.

6

84366049

SUPPORT

Crossover Drive

2шт.

7

134158C92

BALL BEARING,22.5mm ID

4шт.

8

22224

COLLAR

7/8" Hex Bore

4шт.

9

87495545

SENSOR

Hydaulic Drive

2шт.

10

87550916

TENSIONER

Chain

2шт.

11

87505783

SLEEVE

Tensioner

2шт.

12

87505794

TORSION SPRING

Idler

1шт.

13

1277726C1

ROLLER,48mm OD x 34mm L

Idler

2шт.

14

84536443

CHAIN

#50 Bulk 10 Foot Roll

2шт.

15

87758366

TORSION SPRING

Idler

1шт.

16

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

17

84192885

BOLT

3/8"

2шт.

18

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

2шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

20

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

21

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

23

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

24

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

14шт.
