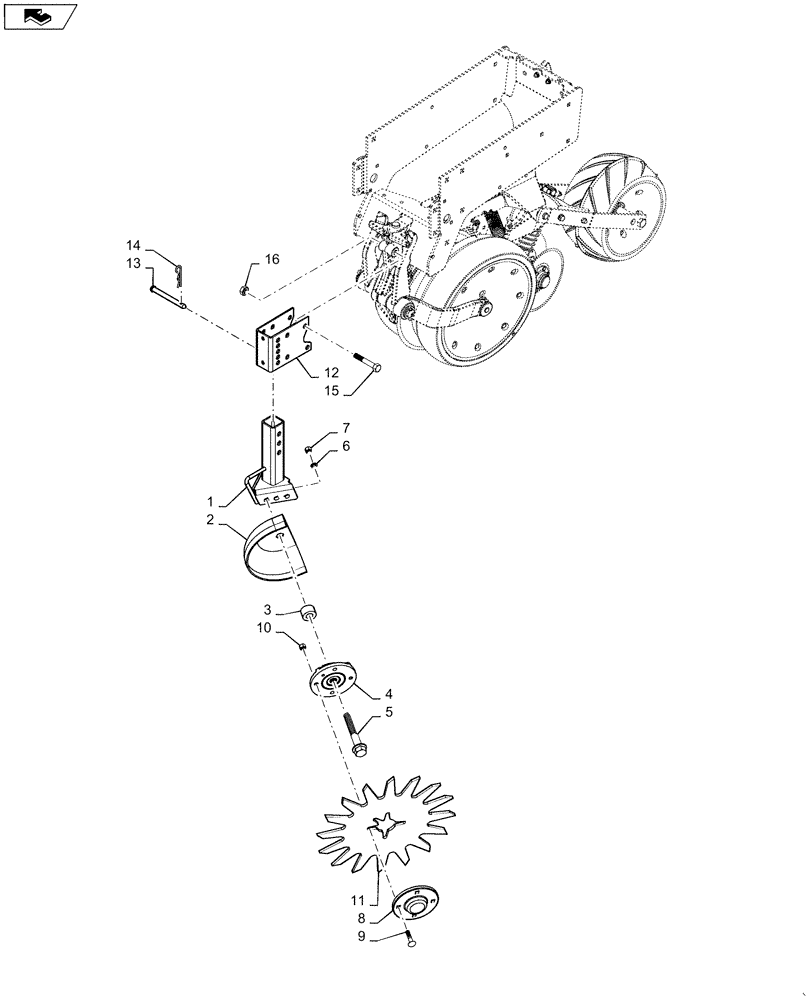

Запчасти Case IH 1265 (75.200.AH[02]) - RESIDUE MANAGER DUAL WHEELS (75) - SOIL PREPARATION

1

87723401

STEM

Row Unit

1шт.

2

133801A2

BEARING COVER

Bearing

2шт.

3

108139A1

SPACER

3/4

2шт.

4

108132A1

FLANGED BEARING

With Bearing

2шт.

5

135322A1

BOLT,Spcl, Hex Flg, 5/8" - 11 x 4", Gr 8

.625 X 4 Grade 8

2шт.

6

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

8

108130A1

HUB CAP

2шт.

9

280623

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

10

87343998

LOCK NUT

5/16

8шт.

11

108131A3

WHEEL,330.2mm OD x 6.35mm Thk

Taper Tooth Spoke

2шт.

12

90974C1

BRACKET

Tillage Attachment Painted

1шт.

13

147404C1

PIN,12.7mm OD x 83mm L

Pointed

1шт.

14

486830R1

COTTER PIN

1шт.

15

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

16

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.
