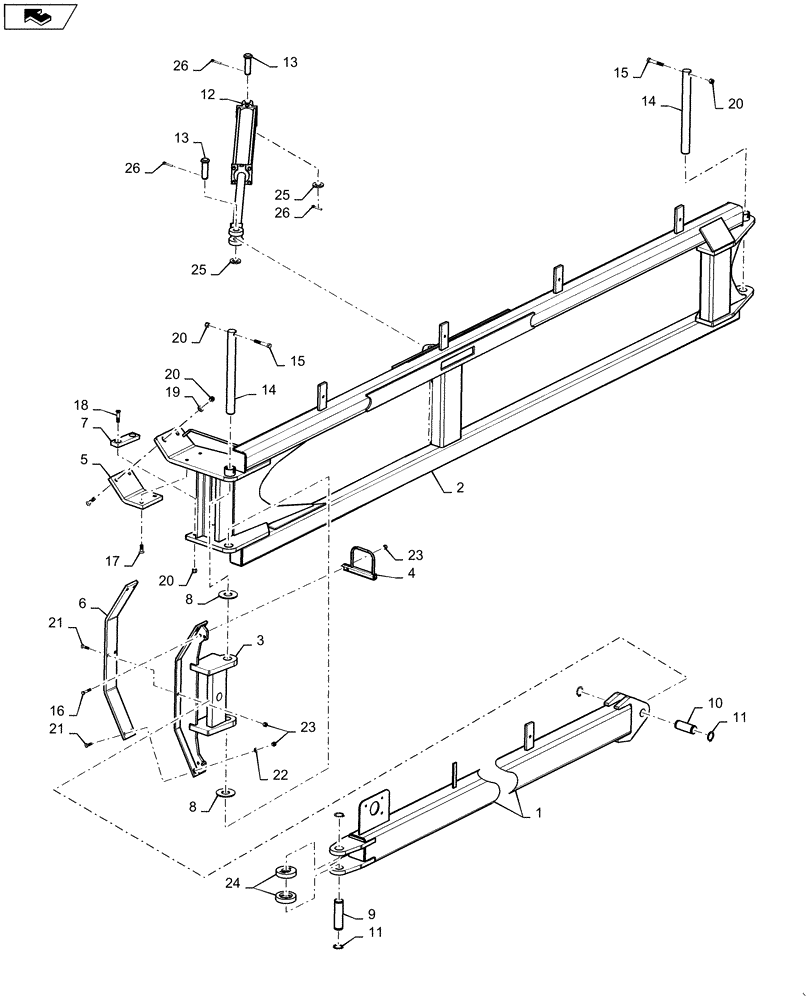

Запчасти Case IH 1265 (39.140.AC[08]) - DRAFT LINK LEFT HAND 60 FOOT FOR 36/20 (39) - FRAMES AND BALLASTING

1

84412630

FRAME

Draft Tube Painted Red

1шт.

2

84345164

FRAME

Rear Draft Tube Left Painted Red

1шт.

3

84131988

FRAME

Draft Center Pivot

1шт.

4

87671075

SUPPORT

Hose

1шт.

5

87671069

PAD

147.6 X 240 X 19.1

1шт.

6

87671065

PAD

76.2 X 860 X 12.7

1шт.

7

87757690

PAD

46 X 147.6 X 19.1

1шт.

8

432584A1

WASHER

1.52 ID 3.5

2шт.

9

87708908

PIN

39.9 X 131mm

1шт.

10

87708895

PIN

38.1 X 89mm

1шт.

11

86632531

SNAP RING,#150, Ext

4шт.

12

87671040

HYDRAULIC CYLINDER,38.1mm Rod, 609.6mm Stroke

3 X 24 3000 PSI

1шт.

13

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

14

87757677

PIN

38.1 X 425mm

2шт.

15

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

16

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

17

87301496

HEX SOC SCREW,Flat Hd, CSK, 1/2" - 13 x 1 1/2"

2шт.

18

22822

SCREW

4шт.

19

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

20

9636698

NUT,1/2"-13, GB

6шт.

21

9920

SCREW,3/8" - 16 x 1.5, Gr 5

.375-16X1

6шт.

22

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

23

9637692

NUT,3/8"-16, Gr B

8шт.

24

87671027

BUSHING

95.3 X 41

2шт.

25

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

2шт.

26

87041

COTTER PIN,1/4" x 1 3/4"

2шт.
