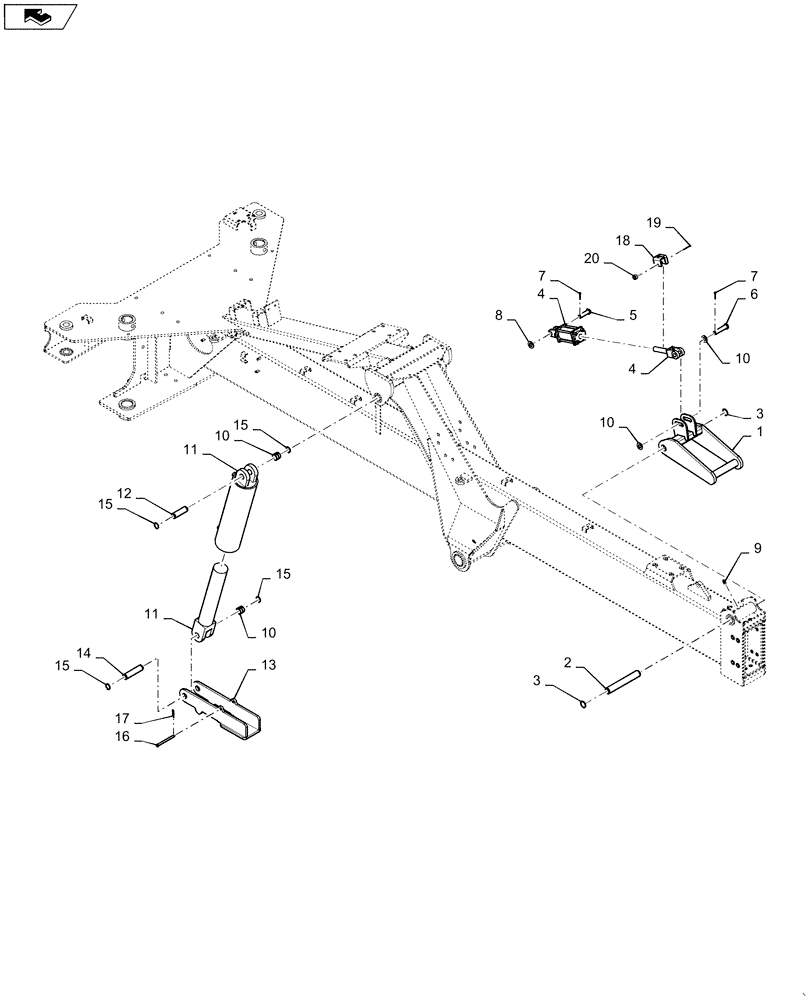

Запчасти Case IH 1265 (39.110.AM[06 ]) - MEDIUM HITCH FOR 36/22 (39) - FRAMES AND BALLASTING

1

87485054

LATCH

Outer Hitch Painted

1шт.

2

87477223

HITCH PIN

Lock

1шт.

3

86625149

SNAP RING,#175, Ext

2шт.

4

87671044

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 76.2mm Stroke

3X4 3000 PSI

1шт.

5

86632568

HEADED PIN,1" x 3 1/2", G5

1шт.

6

86632569

HEADED PIN,1" x 4 1/2", G5

1шт.

7

87041

COTTER PIN,1/4" x 1 3/4"

2шт.

8

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

3шт.

9

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

10

7825

GROOVED BUSHING

4шт.

11

87671035

HYDRAULIC CYLINDER,Double Acting, 505.968mm Stroke

2шт.

12

87725629

PIN

2шт.

13

84177557

SUPPORT

Cylinder Stop Painted

2шт.

14

87475138

PIN

2шт.

15

86632531

SNAP RING,#150, Ext

8шт.

16

84421924

2шт.

17

86629239

COTTER PIN,Int, 5/16" x .177

2шт.

18

84216996

STOP LOCK

Hitch

1шт.

19

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

20

20356

NUT,1/4"-20, GB

1шт.
