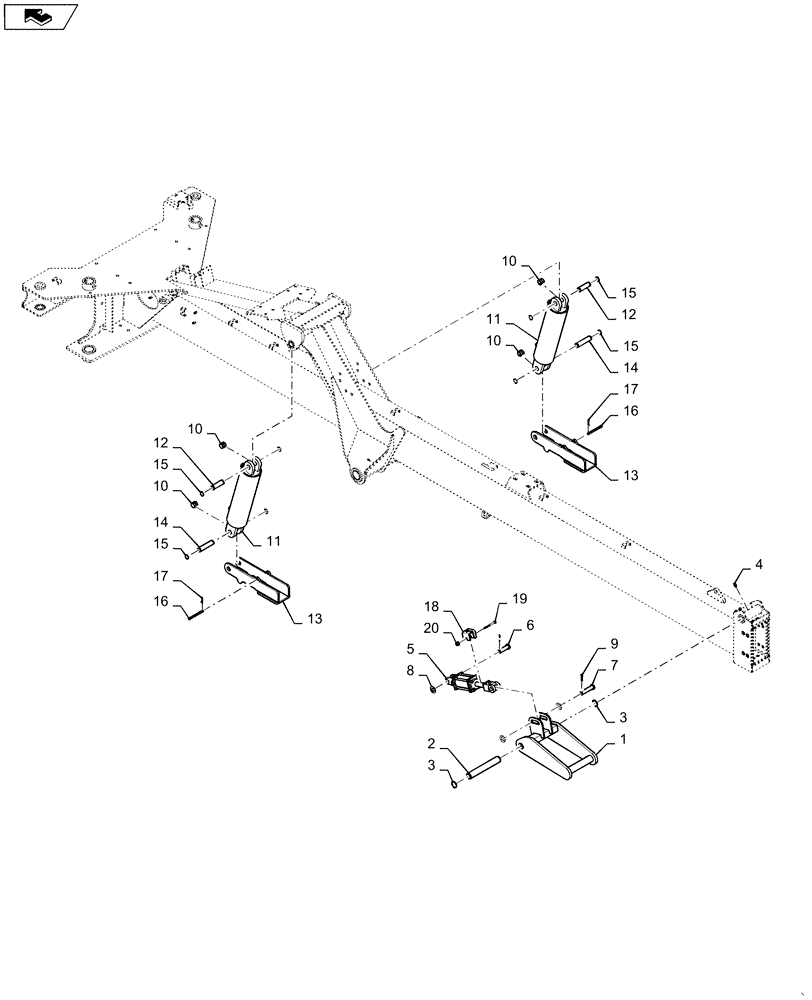

Запчасти Case IH 1265 (39.110.AM[05]) - LONG HITCH FOR 36/30, 32/30 (39) - FRAMES AND BALLASTING

1

87485054

LATCH

Outer Hitch

1шт.

2

87477223

HITCH PIN

Lock

1шт.

3

86625149

SNAP RING,#175, Ext

2шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

5

87671044

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 76.2mm Stroke

3X4 3000 PSI

1шт.

6

86632568

HEADED PIN,1" x 3 1/2", G5

1шт.

7

86632569

HEADED PIN,1" x 4 1/2", G5

1шт.

8

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

3шт.

9

87041

COTTER PIN,1/4" x 1 3/4"

2шт.

10

7825

GROOVED BUSHING

1.75X1.5X1

4шт.

11

87671035

HYDRAULIC CYLINDER,Double Acting, 505.968mm Stroke

6.25 x 19.92 3000 PSI

2шт.

12

87725629

PIN

2шт.

13

84177557

SUPPORT

Cylinder Stop

2шт.

14

87475138

PIN

2шт.

15

86632531

SNAP RING,#150, Ext

8шт.

16

84421924

2шт.

17

86629239

COTTER PIN,Int, 5/16" x .177

2шт.

18

84216996

STOP LOCK

1шт.

19

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

20

20356

NUT,1/4"-20, GB

1шт.
