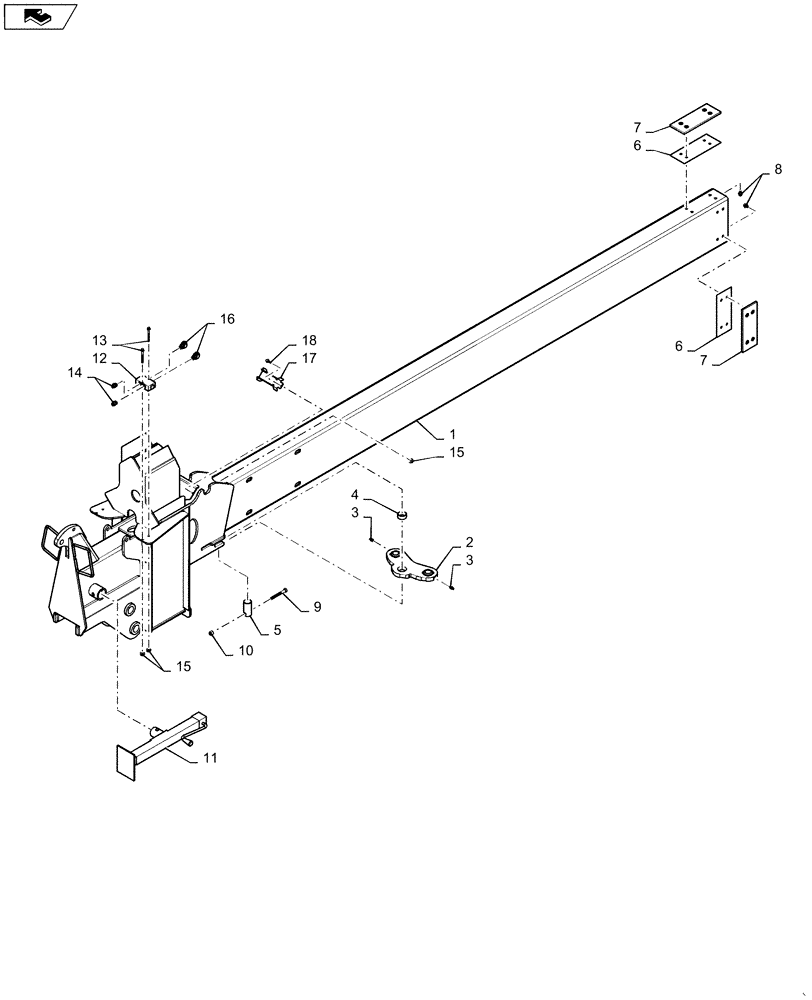

Запчасти Case IH 1265 (39.110.AM[04]) - INNER HITCH 36/20 (39) - FRAMES AND BALLASTING

1

84166856

FRAME

Inner Hitch 36/20

1шт.

2

84129316

PLATE

Draft Tube Painted

1шт.

3

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

4

87686078

BUSHING

2.25 X 2 X1

1шт.

5

87486152

PIN

Draft Tube

1шт.

6

87757688

WEAR PAD

Hitch Painted

4шт.

7

87757689

SLIDING PAD

Hitch

4шт.

8

86544354

FLANGE BOLT

1/2X 0.75

16шт.

9

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

10

86639566

NUT,5/8"-11, GB

1шт.

11

385338A1

JACK

7000 Sidewind

1шт.

12

298624A1

VALVE

Check

1шт.

13

87023128

BOLT,Hex Flg, 1/4" - 20 x 2 1/2", Gr 5

2шт.

14

87672176

HYD CONNECTOR

Incl O-Ring

2шт.

15

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

16

84390792

90 ELBOW

Incl O-Ring

2шт.

17

84126824

CLAMP BRACKET

1шт.

18

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.
