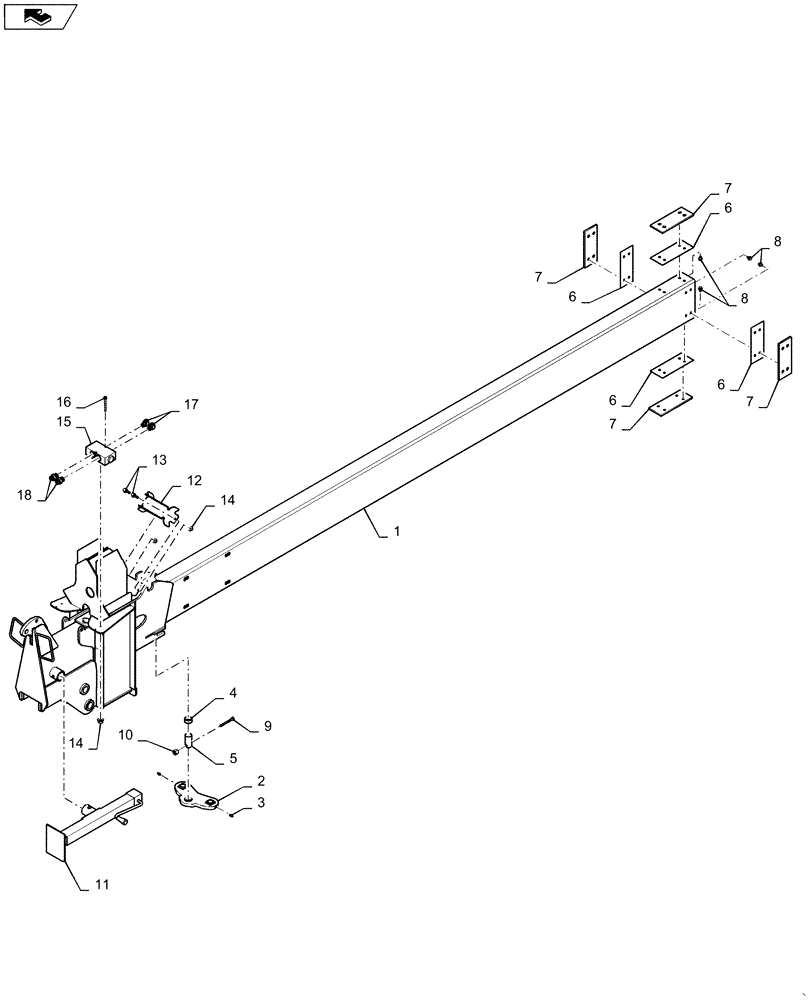

Запчасти Case IH 1265 (39.110.AM[03]) - INNER HITCH 32/30, 36/22 (39) - FRAMES AND BALLASTING

1

87471318

FRAME

Inner Hitch 32/30, 36/22

1шт.

2

84129316

PLATE

Draft Tube Painted

1шт.

3

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

4

87686078

BUSHING

2.25 X 2 X 1L

1шт.

5

87486152

PIN

Draft Tube

1шт.

6

87757688

WEAR PAD

Hitch Painted

4шт.

7

87757689

SLIDING PAD

Hitch

4шт.

8

86544354

FLANGE BOLT

1/2 X 0.75

16шт.

9

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

10

86639566

NUT,5/8"-11, GB

1шт.

11

385338A1

JACK

7000 Sidewind

1шт.

12

84126824

CLAMP BRACKET

1шт.

13

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

14

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

15

298624A1

VALVE

Check

1шт.

16

87023128

BOLT,Hex Flg, 1/4" - 20 x 2 1/2", Gr 5

2шт.

17

84390792

90 ELBOW

Incl O-Ring

2шт.

18

87672176

HYD CONNECTOR

Incl O-Ring

2шт.
