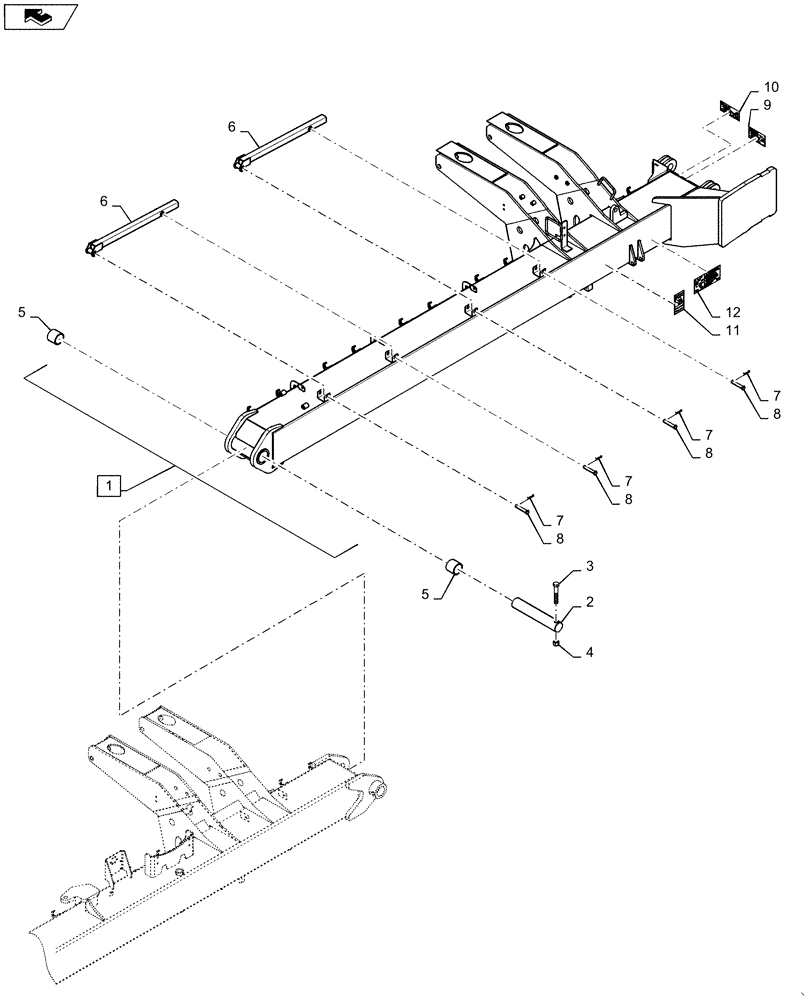

Запчасти Case IH 1265 (39.100.BC[12]) - OUTER WING LEFT SIDE FOR 36/30, 32/30 (39) - FRAMES AND BALLASTING

1

84581756

PACKAGE

Outer Wing Left Side With Decals

1шт.

2

87695477

PIN

76.2 X 416 mm

1шт.

3

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

1шт.

4

280286

NUT,1"-8, GB

1шт.

5

87503180

BUSHING

3.0 X 3.5 X 3

2шт.

6

84223968

SUPPORT

Wing Wheel Stand

2шт.

7

86632566

HEADED PIN,3/4" x 4 1/2", G5

4шт.

8

86629239

COTTER PIN,Int, 5/16" x .177

4шт.

9

87588039

DECAL

Crush Hazard

1шт.

10

416611A1

DECAL

Electrical Hazard

1шт.

11

278214A1

DECAL

Pinch Point

2шт.

12

84196417

DECAL

Safety Stand

1шт.
