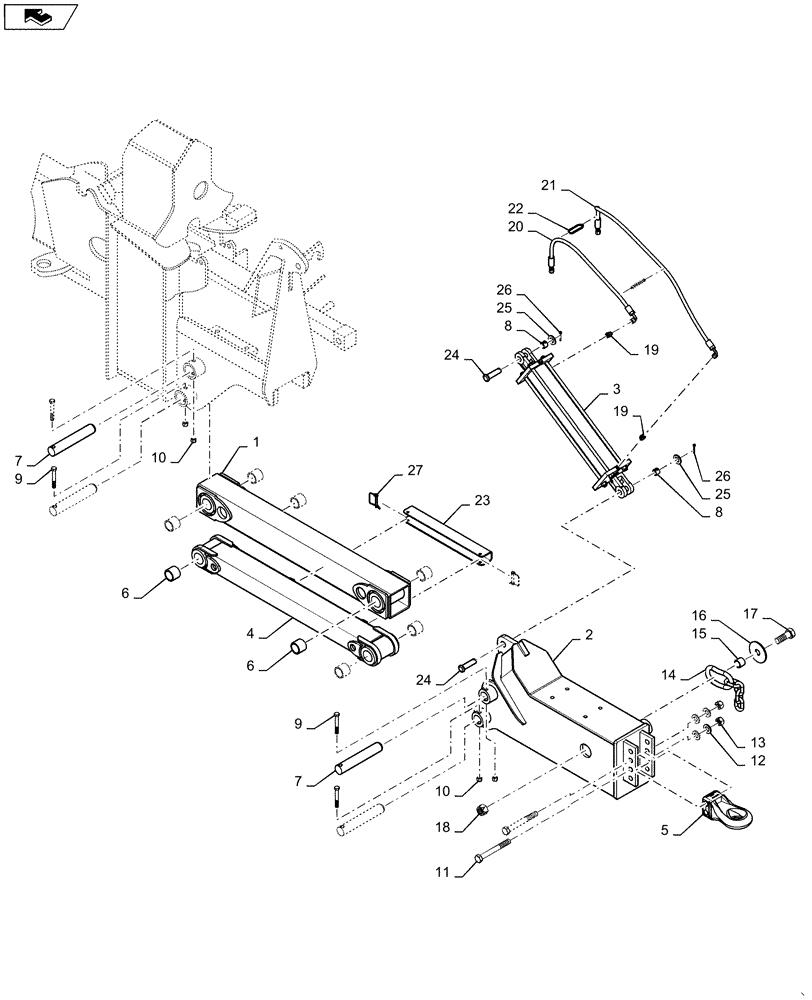

Запчасти Case IH 1265 (39.100.AM[01]) - PARALLEL HITCH (39) - FRAMES AND BALLASTING

1

87471337

ARM

Upper Parallel Link Painted

1шт.

2

87496157

HITCH

Parallel Base Painted

1шт.

3

87671045

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 609.6mm Stroke

4X24 3000 PSI No Pins

1шт.

4

87471336

ARM

Lower Parallel Link Painted

1шт.

5

427981A1

TOW BAR

Hitch Base Painted

1шт.

6

87632788

BUSHING

Polylube 2.5 Od X 2.0 Id

8шт.

7

87757679

PARALLEL PIN

Hitch Pivot

4шт.

8

3523

BUSHING

1.25 X 1 X 1

2шт.

9

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

4шт.

10

19670

NUT,5/8"-11, GB

4шт.

11

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

12

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

4шт.

13

86511609

NUT,1"-8, G8

2шт.

14

447759A1

CHAIN

Safety

1шт.

15

84273277

SUPPORT

Safety Chain

1шт.

16

84279518

SUPPORT

Safety Chain

1шт.

17

87493272

BOLT

1.25X3

1шт.

18

86609684

NUT,1 1/4"-7, GB

1шт.

19

87672176

HYD CONNECTOR

Incl O-Ring

2шт.

20

84540341

HYDRAULIC HOSE

10mm Id X 1041 mm

1шт.

21

84546635

HYDRAULIC HOSE

10mm Id X 1665 mm

1шт.

22

87502038

CABLE TIE

2шт.

23

84362605

STOP

Hitch Cylinder

1шт.

24

87319527

HEADED PIN,1" OD x 3-3/4" L

2шт.

25

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

2шт.

26

87041

COTTER PIN,1/4" x 1 3/4"

2шт.

27

87574044

PIN

Square Hook

2шт.
