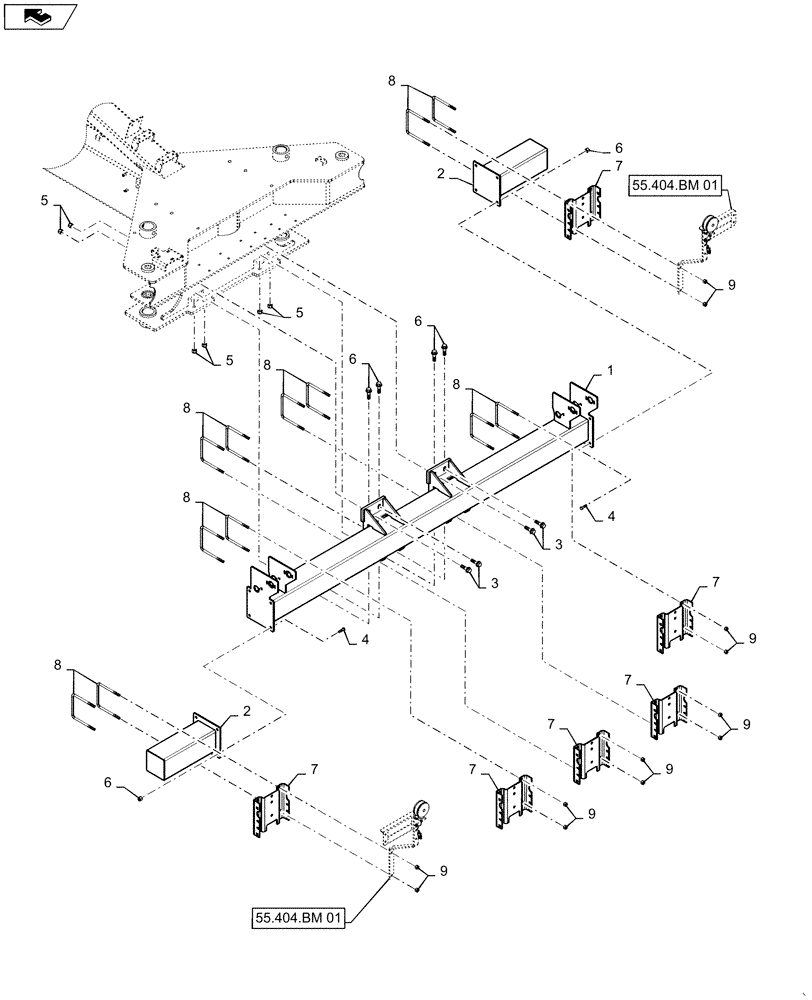

Запчасти Case IH 1265 (39.100.AJ[01]) - 30 INCH SUB BAR FRAME FOR 36/30,32/30 (39) - FRAMES AND BALLASTING

1

87484766

FRAME

30 Inch Sub Bar Painted

1шт.

2

87488612

FRAME

Sub Bar Extention Painted

2шт.

3

86637940

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

5

280375

NUT,3/4"-10, GC

8шт.

6

87333862

NUT

1/2 Inch

8шт.

7

141728C5

BRACKET

Head Channel

6шт.

8

1250813C1

U-BOLT

5/8 th

12шт.

9

280374

NUT,Hex, 5/8" - 11, Gr 5

24шт.
