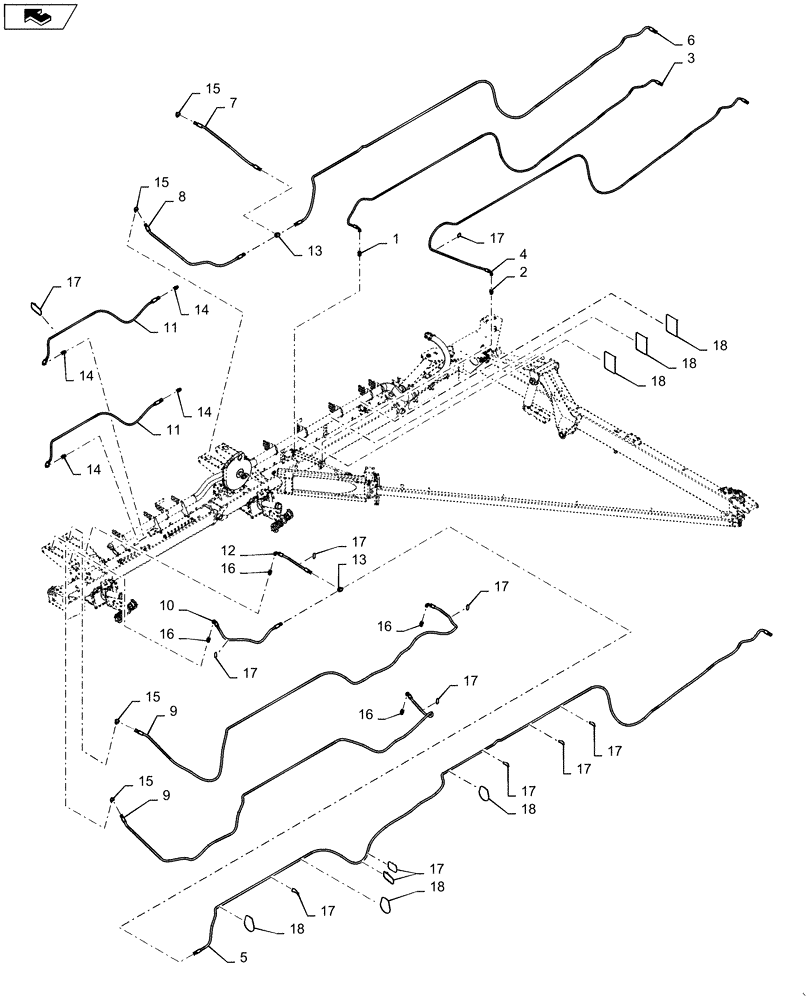

Запчасти Case IH 1265 (35.944.AI[15]) - HYDRAULIC HOSES AND FITTINGS RIGHT FOR 32/30 (35) - HYDRAULIC SYSTEMS

1

87672176

HYD CONNECTOR

3/8 - 1/2

1шт.

2

84536883

FITTING

3/4 -1/2

1шт.

3

84566436

HYDRAULIC HOSE

10mm ID X 6220mm

1шт.

4

84566437

HYDRAULIC HOSE

10mm ID X 7000mm

1шт.

5

84566438

HYDRAULIC HOSE

12.5mm ID X 12200mm

1шт.

6

84566439

HYDRAULIC HOSE

12.5mm ID X 7250mm

1шт.

7

84539656

HYDRAULIC HOSE

12.5mm ID X 1145mm

1шт.

8

84539655

HYDRAULIC HOSE

12.5mm ID X 1397mm

1шт.

9

84539646

HYDRAULIC HOSE

12.5mm ID X 6500mm

2шт.

10

84539651

HYDRAULIC HOSE

12.5 ID X 1145mm

1шт.

11

84566448

HYDRAULIC HOSE

10mm ID X 2300mm

2шт.

12

84539653

HYDRAULIC HOSE

12.5mm ID X 533mm

1шт.

13

84545648

UNION TEE

1/2

2шт.

14

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

4шт.

15

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

4шт.

16

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

4шт.

17

87502038

CABLE TIE

Small

1шт.

18

87502040

CABLE TIE

Large

1шт.
