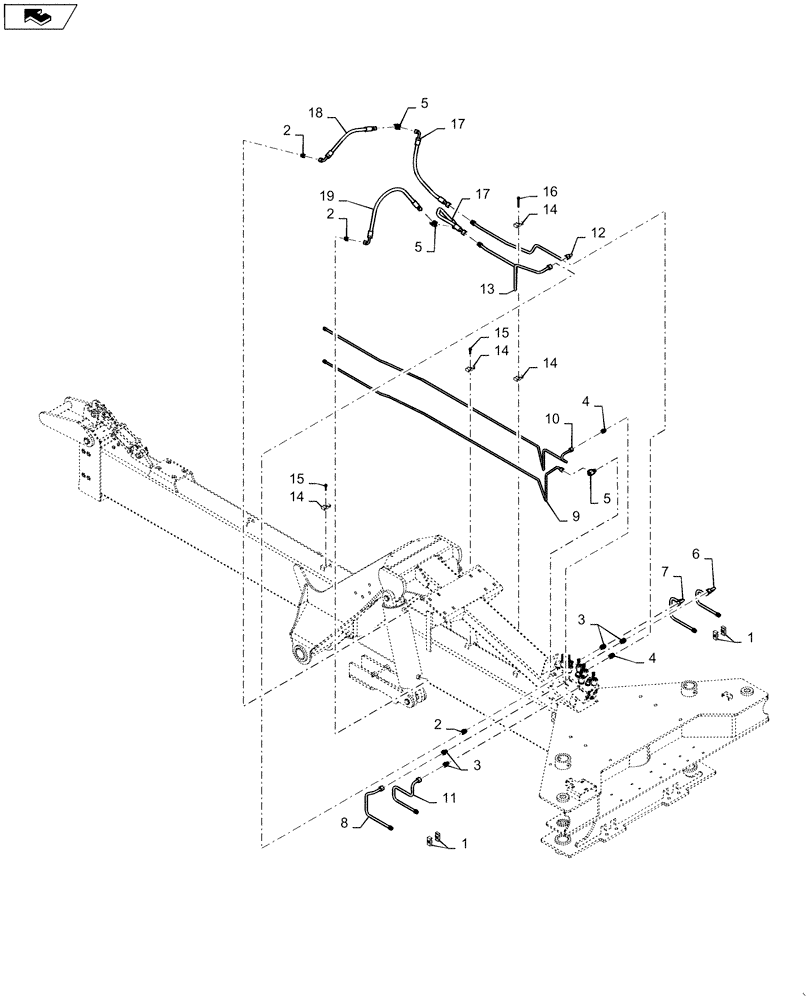

Запчасти Case IH 1265 (35.944.AI[10]) - HYDRAULICS LIFT CENTER (35) - HYDRAULIC SYSTEMS

1

87000921

HOSE CLAMP

2шт.

2

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

3шт.

3

87351379

HYD CONNECTOR

4шт.

4

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

2шт.

5

84533155

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

3шт.

6

84532912

HYD TUBE

Valve To RH Wing Lift Cylinder Port

1шт.

7

84532916

HYD TUBE

Valve To RH Wing Lift Cylinder Piston Port

1шт.

8

84532910

HYD TUBE

Valve To LH Wing Lift Cylinder Piston Port

1шт.

9

84532934

HYD TUBE

Valve To LH Fold Cylinder Rod Port/ Draft Cylinder Port

1шт.

10

84532935

HYD TUBE

Valve To Hitch Cylinder Rod Port

1шт.

11

84532907

HYD TUBE

Valve To LH Wing Lift Cylinder Rod Port

1шт.

12

84532951

HYD TUBE

Valve To Center Lift Cylinder Rod Port/Draft Cylinder Piston Port

1шт.

13

84532950

HYD TUBE

Valve To Center Lift Rod Port

1шт.

14

87482623

CLAMP

4шт.

15

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

16

84553071

FLANGE BOLT

1шт.

17

84536354

HYDRAULIC HOSE

12.5mm ID X 755mm

2шт.

18

84536356

HYDRAULIC HOSE

12.5mm ID X 584mm

1шт.

19

84536352

HYDRAULIC HOSE

12.5mm ID X 990mm

1шт.
