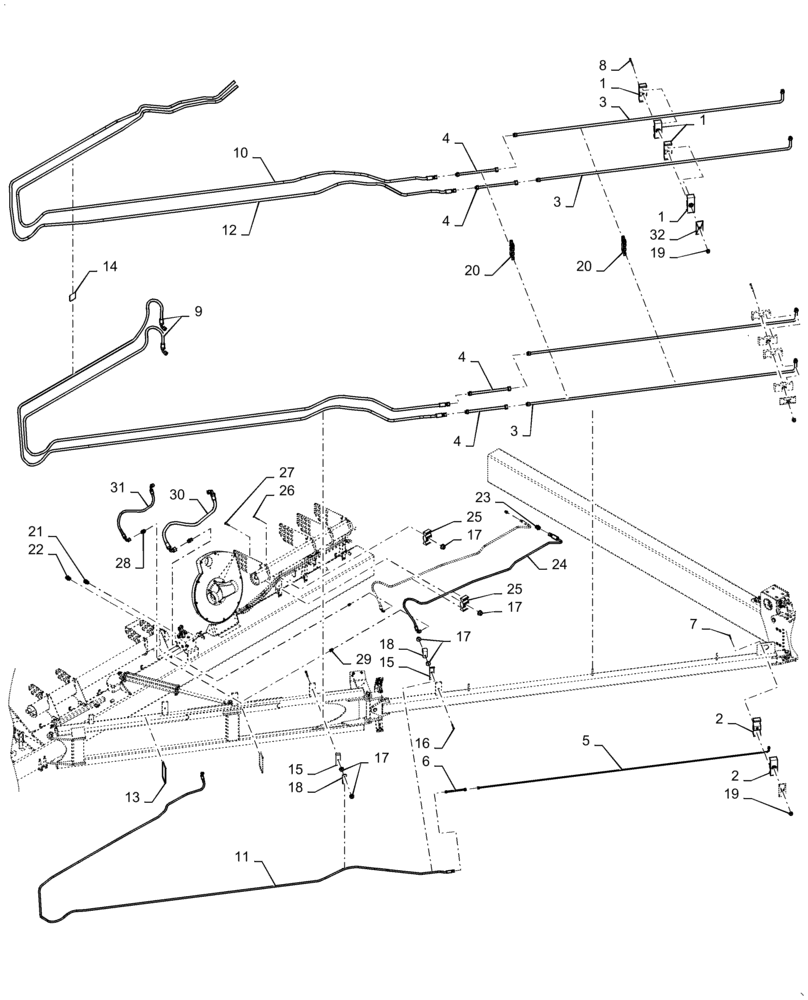

Запчасти Case IH 1265 (35.944.AI[08]) - RIGHT HAND DRAFT HYDRAULIC TUBE 60FT (35) - HYDRAULIC SYSTEMS

1

87000152

CLAMP,25.4mm D Clamping Pipes x 2

Hydraulic Tube 25.4 X 25.4

4шт.

2

87000149

CLAMP

Hydraulic Tube 12.7 X 12.7

1шт.

3

84532902

HYD TUBE

Draft

4шт.

4

84532938

HYD TUBE

4шт.

5

84532904

HYD TUBE

1шт.

6

84532942

HYD TUBE

1шт.

7

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

8

9849585

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

9

84564750

HYDRAULIC HOSE

19mm ID X 9145mm

2шт.

10

84564769

HYDRAULIC HOSE

10mm ID X 14500mm

1шт.

11

84564768

HYDRAULIC HOSE

10mm ID X 9270mm

1шт.

12

84564769

HYDRAULIC HOSE

19mm ID X 14500mm

1шт.

13

112620A1

CABLE TIE

Large Black

4шт.

14

87502038

CABLE TIE

Small

12шт.

15

87545575

HOSE CLAMP

5шт.

16

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

5шт.

17

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

15шт.

18

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

19

9823743

FLANGE NUT,Flg, 5/16"-18

3шт.

20

47692514

SUPPORT

3шт.

21

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

22

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

23

84139327

HYD CONNECTOR

2шт.

24

84564765

HYDRAULIC HOSE

2шт.

25

87482623

CLAMP

5шт.

26

84198532

CARRIAGE BOLT

3шт.

27

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

2шт.

28

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1шт.

29

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

30

84564766

HYDRAULIC HOSE

1шт.

31

84564767

HYDRAULIC HOSE

1шт.

32

87000230

PLATE

5шт.
