Запчасти Case IH 1265 (35.944.AI[07]) - HYDRAULIC DRAFT TUBES LEFT FOR 36/20 (35) - HYDRAULIC SYSTEMS

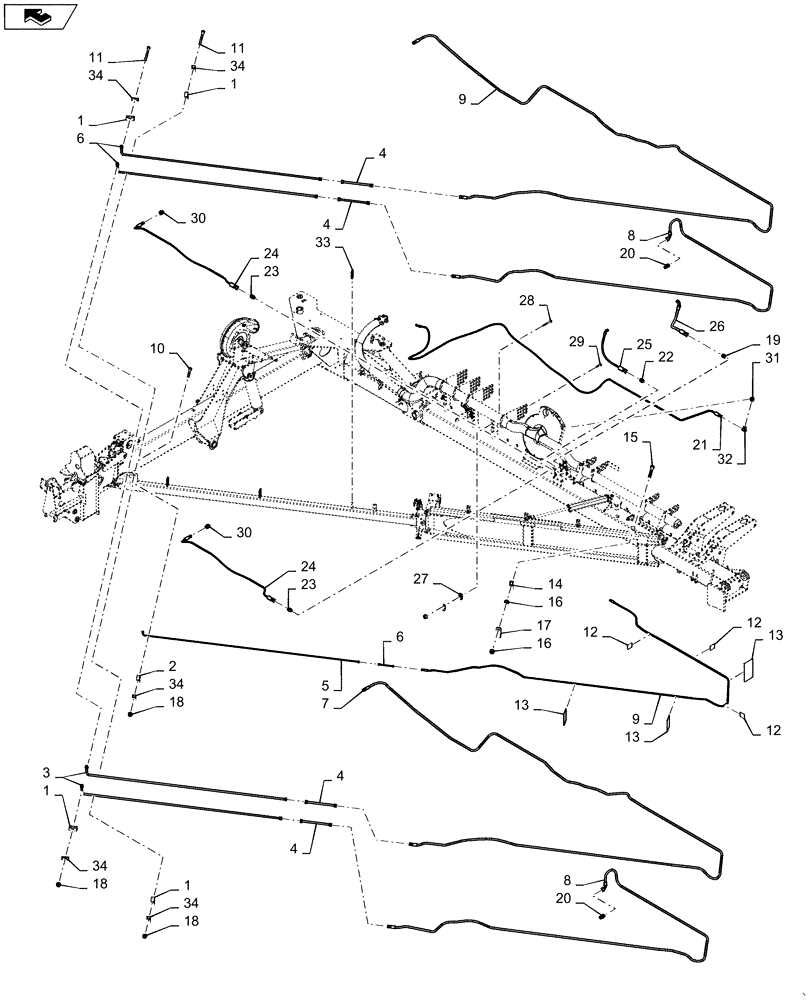

Схема запчастей Case IH 1265 - (35.944.AI[07]) - HYDRAULIC DRAFT TUBES LEFT FOR 36/20 (35) - HYDRAULIC SYSTEMS
16
6
30
21
29
16
1
12
18
10
23
17
24
20
11
28
15
2
34
20
4
34
23
home
1
12
33
13
32
25
27
8
13
9
5
34
18
4
11
22
6
8
18
31
4
30
19
14
1
13
34
34
4
12
9
3
7
1
26
24

Артикул

Название

Примечание

Количество

1

87000152

CLAMP,25.4mm D Clamping Pipes x 2

Tube 25.4 X 25.4

4шт.

2

87000149

CLAMP

Tube 12.7 X 12.7

1шт.

3

84532902

HYD TUBE

Draft

4шт.

4

84532938

HYD TUBE

Draft Extention

4шт.

5

84532904

HYD TUBE

Draft CD Standard

1шт.

6

84532942

HYD TUBE

Tube Draft

1шт.

7

84564769

HYDRAULIC HOSE

19mm ID X 14500mm

1шт.

8

84564762

HYDRAULIC HOSE

19mm ID X 9000mm

1шт.

9

84564759

HYDRAULIC HOSE

10mm ID X 8980mm

1шт.

10

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

11

9849585

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

12

87502038

CABLE TIE

Small

1шт.

13

87502040

CABLE TIE

Large

1шт.

14

87545575

HOSE CLAMP

5шт.

15

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

5шт.

16

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

15шт.

17

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

18

9823743

FLANGE NUT,Flg, 5/16"-18

3шт.

19

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

20

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

21

84564770

HYDRAULIC HOSE

10mm ID X 7950mm

1шт.

22

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1/2 -5/8

1шт.

23

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

24

84564772

HYDRAULIC HOSE

10mm ID X 2770mm

1шт.

25

84564773

HYDRAULIC HOSE

12.5mm ID X 960mm

1шт.

26

84564774

HYDRAULIC HOSE

19mm ID X 850mm

1шт.

27

87482623

CLAMP

Large

5шт.

28

84198532

CARRIAGE BOLT

.375 X 3.50

3шт.

29

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

2шт.

30

84139327

HYD CONNECTOR

.375X3.50

2шт.

31

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

32

84561113

BRANCH TEE

1шт.

33

84534025

SUPPORT

Tube

3шт.

34

87000230

PLATE

Hose Clamp

5шт.

Выбрано товаров: 34
