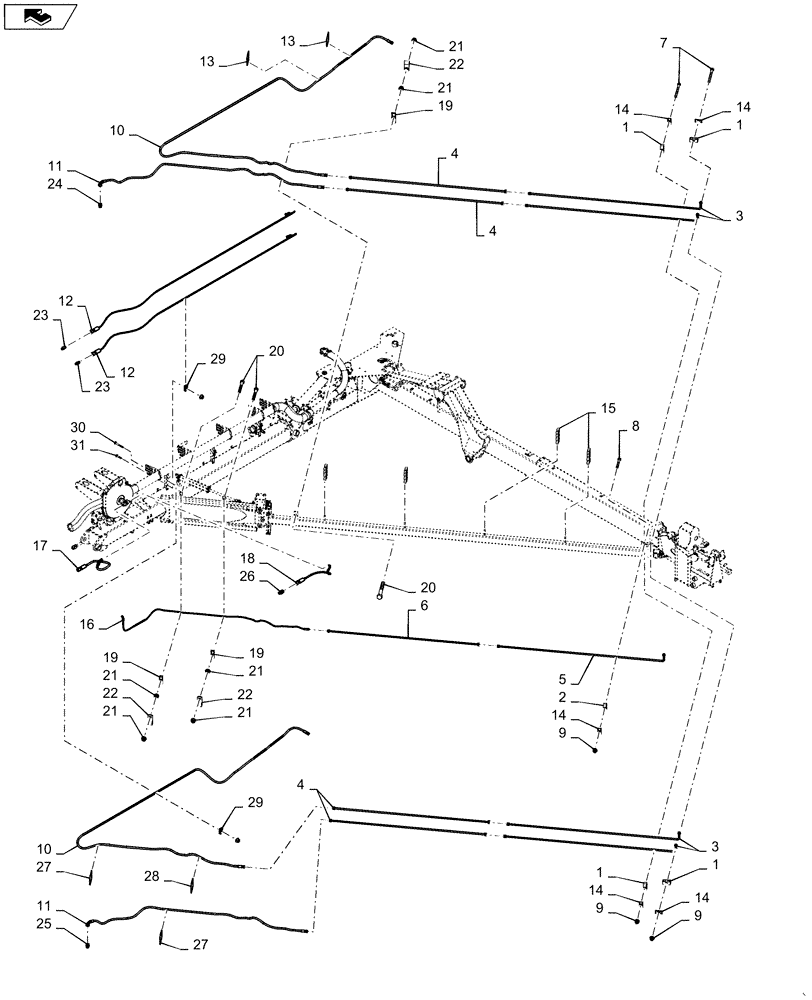

Запчасти Case IH 1265 (35.944.AI[04]) - HYDRAULICS RIGHT DRAFT TUBES FOR 32/30 (35) - HYDRAULIC SYSTEMS

1

87000152

CLAMP,25.4mm D Clamping Pipes x 2

4шт.

2

87000149

CLAMP

1шт.

3

84532902

HYD TUBE

4шт.

4

84532905

HYD TUBE

4шт.

5

84532904

HYD TUBE

1шт.

6

84532906

HYD TUBE

1шт.

7

9849585

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

8

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

9

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

10

84566418

HYDRAULIC HOSE

19mm ID X 10500mm

2шт.

11

84566420

HYDRAULIC HOSE

19mm ID X 5200mm

2шт.

12

84566421

HYDRAULIC HOSE

19mm ID X 4700mm

2шт.

13

87502038

CABLE TIE

7шт.

14

87000230

PLATE

5шт.

15

84534025

SUPPORT

4шт.

16

84566422

HYDRAULIC HOSE

10mm ID X 5000mm

1шт.

17

84566423

HYDRAULIC HOSE

19mm ID x 1500mm

1шт.

18

84566426

HYDRAULIC HOSE

12.5mm ID X 1200mm

1шт.

19

87545575

HOSE CLAMP

3шт.

20

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

22

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

23

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

4шт.

24

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

25

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

26

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1шт.

27

87502038

CABLE TIE

4шт.

28

87502038

CABLE TIE

2шт.

29

87482623

CLAMP

6шт.

30

84198532

CARRIAGE BOLT

3шт.

31

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3шт.
