Запчасти Case IH 1265 (35.944.AI[02]) - HYDRAULICS RIGHT DRAFT TUBE FOR 36/30 (35) - HYDRAULIC SYSTEMS

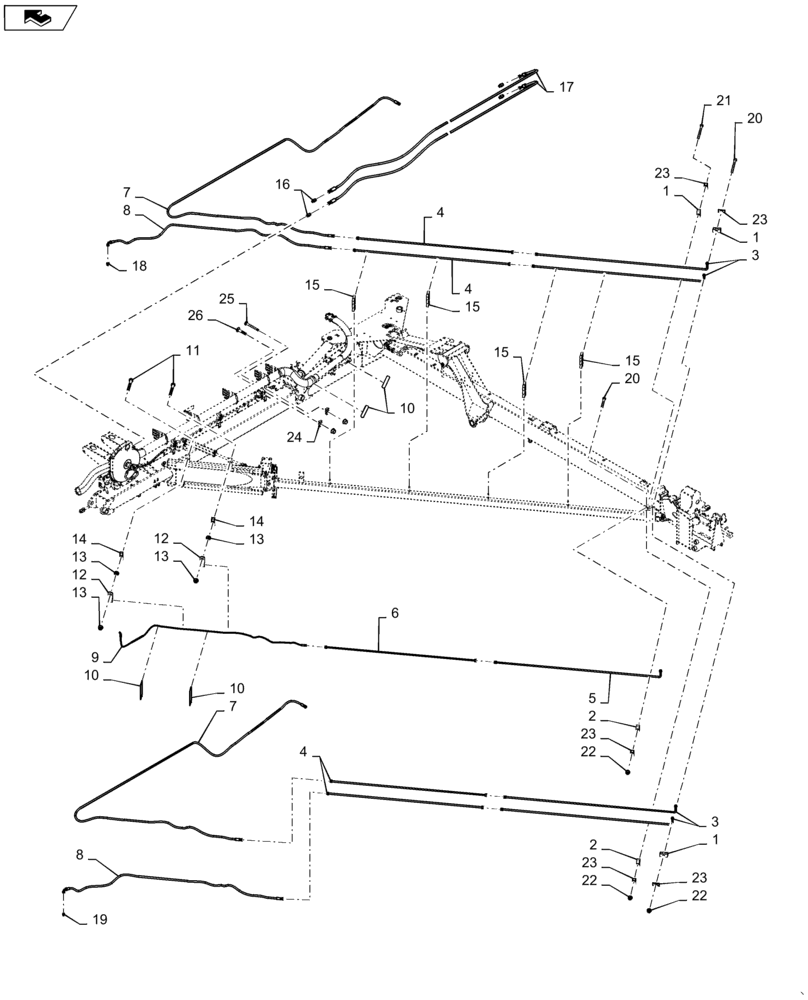

Схема запчастей Case IH 1265 - (35.944.AI[02]) - HYDRAULICS RIGHT DRAFT TUBE FOR 36/30 (35) - HYDRAULIC SYSTEMS
8
13
10
12
1
14
25
home
26
1
16
21
13
23
18
11
8
5
19
6
3
22
23
15
10
2
23
17
10
23
23
15
7
13
9
22
22
15
14
3
20
4
2
15
7
4
20
24
13
1
12
4

Артикул

Название

Примечание

Количество

1

87000152

CLAMP,25.4mm D Clamping Pipes x 2

Hydraulic Tube 25.4 X 25.4

4шт.

2

87000149

CLAMP

Hydraulic Tube 12.7 X 12.7

1шт.

3

84532902

HYD TUBE

Draft

4шт.

4

84532905

HYD TUBE

Draft Extention

4шт.

5

84532904

HYD TUBE

Draft CD

1шт.

6

84532906

HYD TUBE

Draft CD

1шт.

7

84541024

HYDRAULIC HOSE

19mm ID X 11720 mm

2шт.

8

84541023

HYDRAULIC HOSE

19mm ID X 5500mm

2шт.

9

84541025

HYDRAULIC HOSE

10mm ID X 4570mm

1шт.

10

87502038

CABLE TIE

Small

1шт.

11

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

12

87504587

Hose

3шт.

13

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.

14

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

15

84534025

SUPPORT

Hydraulic Tube

4шт.

16

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

4шт.

17

84539644

HYDRAULIC HOSE

10mm ID X 4445mm

1шт.

18

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

19

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

20

9849585

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

21

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

22

9823743

FLANGE NUT,Flg, 5/16"-18

3шт.

23

87000230

PLATE

Hose Clamp

5шт.

24

87482623

CLAMP

8шт.

25

84198531

CARRIAGE BOLT

4шт.

26

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

4шт.

Выбрано товаров: 26
