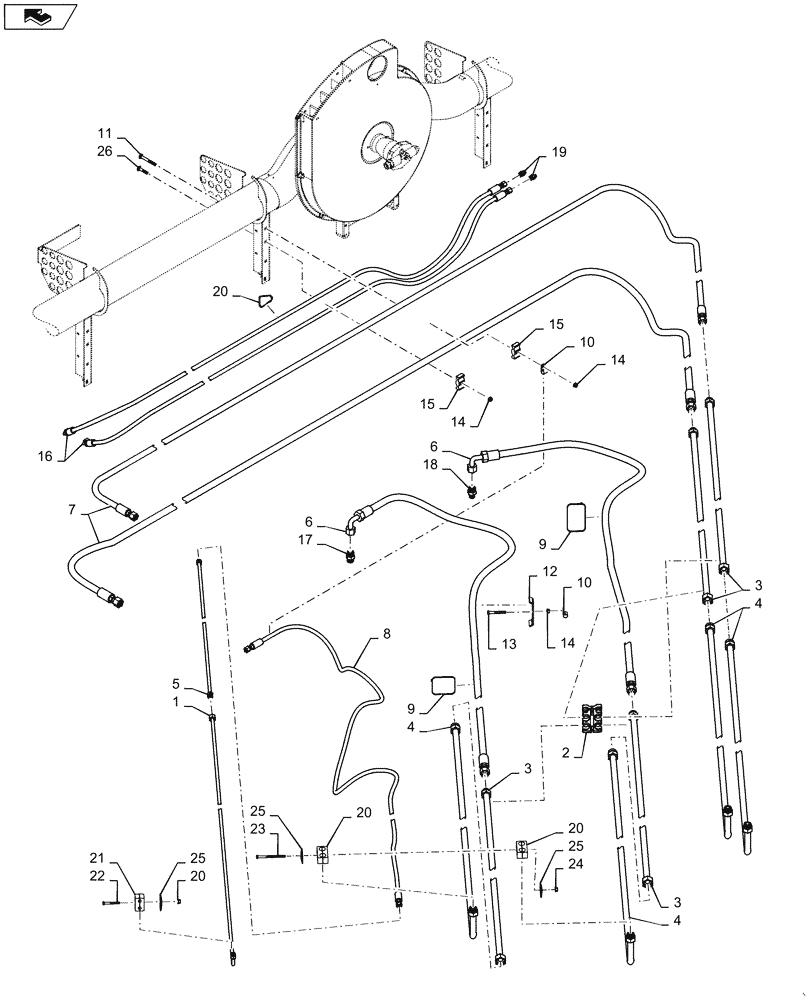

Запчасти Case IH 1265 (35.944.AI[01]) - HYDRAULICS LEFT DRAFT TUBE FOR 36/30 (35) - HYDRAULIC SYSTEMS

1

84532904

HYD TUBE

Draft CD

1шт.

2

84534025

SUPPORT

Hydraulic Tube

4шт.

3

84532902

HYD TUBE

Draft

4шт.

4

84532905

HYD TUBE

Draft Extention

4шт.

5

84532906

HYD TUBE

Draft CD Extention Left

1шт.

6

84541023

HYDRAULIC HOSE

19mm ID X 5500mm

2шт.

7

84541024

HYDRAULIC HOSE

19mm ID X 11720mm

2шт.

8

84565659

HYDRAULIC HOSE

10mm ID X 4445mm

1шт.

9

87502038

CABLE TIE

Small

1шт.

10

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

11

84198532

CARRIAGE BOLT

.375X3.50

5шт.

12

87545575

HOSE CLAMP

3шт.

13

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

15шт.

15

87482623

CLAMP

Large

9шт.

16

84539644

HYDRAULIC HOSE

10mm ID X 4445mm

2шт.

17

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl O-Ring

1шт.

18

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

Incl O-Ring

1шт.

19

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl O-Ring

4шт.

20

87000152

CLAMP,25.4mm D Clamping Pipes x 2

Tube

4шт.

21

87000149

CLAMP

Tube

1шт.

22

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

23

9849585

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

24

9823743

FLANGE NUT,Flg, 5/16"-18

3шт.

25

87000230

PLATE

Hose Clamp

5шт.

26

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

4шт.
