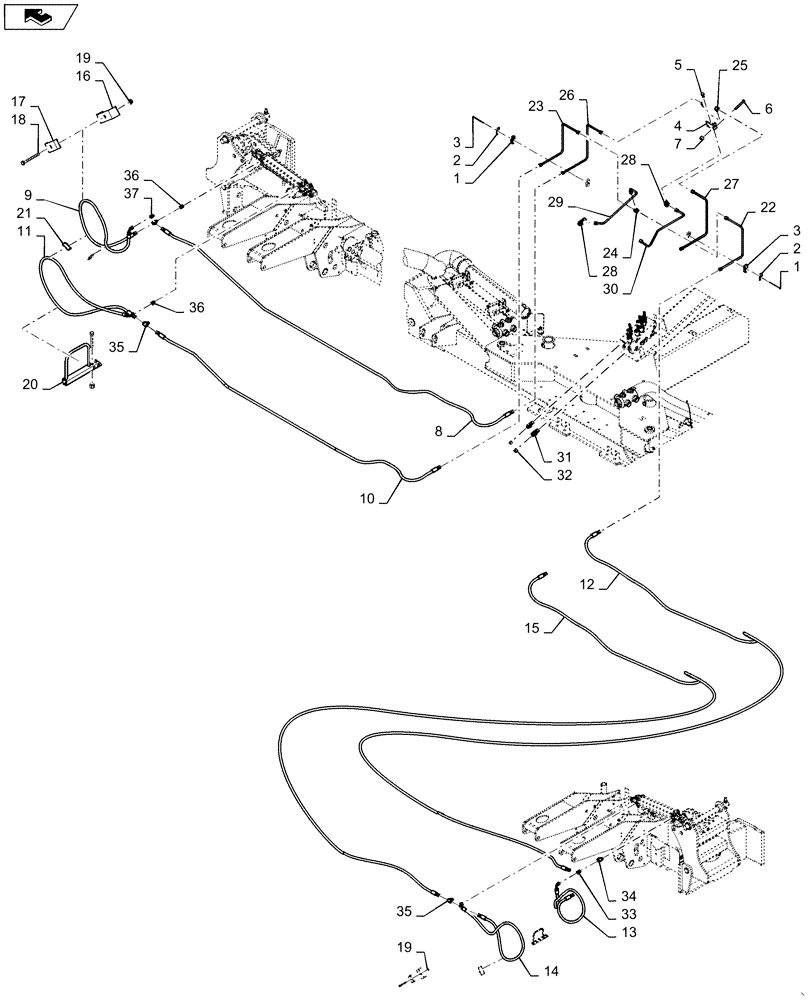

Запчасти Case IH 1265 (35.746.AC[04]) - MARKER HYDRAULICS FOR 36/20 (35) - HYDRAULIC SYSTEMS

1

87000149

CLAMP

Tube 12.7

2шт.

2

87000230

PLATE

Hose Clamp

2шт.

3

NLS

NO LONGER SERVICED

2шт.

4

87463248

VALVE

Marker Block

1шт.

5

76349

PLUG,9/16" - 18 ORB

1шт.

6

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

6шт.

7

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

6шт.

8

84565326

HYDRAULIC HOSE

12.5 mm ID X 9820 mm Left

1шт.

9

84541260

HYDRAULIC HOSE

12.5 mm ID X 1850 mm Left

1шт.

10

84565327

HYDRAULIC HOSE

12.5 mm ID X 10320 mm Left

1шт.

11

84541259

HYDRAULIC HOSE

12.5 mm ID X 2415 mm Left

1шт.

12

84565326

HYDRAULIC HOSE

12.5 mm ID X 9820mm Right

1шт.

13

84541260

HYDRAULIC HOSE

12.5 mm ID X 1850 mm Right

1шт.

14

84541259

HYDRAULIC HOSE

12.5 mm ID X 2415 mm Right

1шт.

15

84565327

HYDRAULIC HOSE

12.5 mm ID X 10320 mm Right

1шт.

16

84138695

BRACKET, SUPPORTING

Hose Painted

2шт.

17

427781A1

HOSE CLAMP

#2

2шт.

18

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

20

87671075

SUPPORT

Hose

2шт.

21

87502038

CABLE TIE

Small

6шт.

22

84532931

HYD TUBE

Marker Right

1шт.

23

84532933

HYD TUBE

Marker Left

1шт.

24

84545648

UNION TEE

1/2

1шт.

25

87016877

ELBOW,90 Degree, 13/16"-16 x 9/16"-18, Adj, ORFS

2шт.

26

84532932

HYD TUBE

Marker

1шт.

27

84532930

HYD TUBE

Valve C1

1шт.

28

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

90 Deg

1шт.

29

84532948

HYD TUBE

Marker MX Port

1шт.

30

84532947

HYD TUBE

Marker M Port

1шт.

31

84533155

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

3/4-16

3шт.

32

87331951

ORIFICE

12mm

2шт.

33

84544770

FITTING

Orifice

1шт.

34

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

35

87016878

TEE,13/16"-18 x 3/4"-16 Br, ORFS

2шт.

36

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

2шт.

37

84545572

FITTING

3/4-1/2

2шт.
