Запчасти Case IH 1265 (35.106.AO[01]) - PTO HOSES AND PUMP (35) - HYDRAULIC SYSTEMS

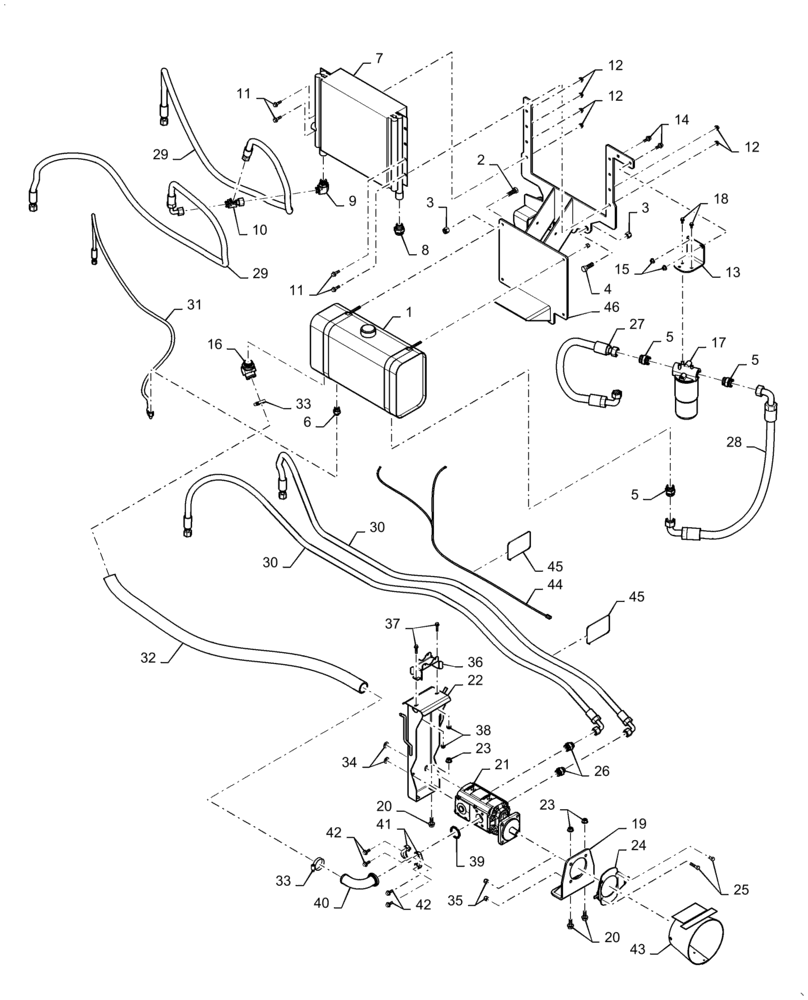

Схема запчастей Case IH 1265 - (35.106.AO[01]) - PTO HOSES AND PUMP (35) - HYDRAULIC SYSTEMS
45
23
12
9
5
5
25
21
35
5
23
13
14
30
43
31
46
12
6
12
29
19
26
8
18
17
2
42
10
3
1
29
37
36
11
38
24
39
41
20
34
28
33
15
30
33
42
44
32
45
20
16
3
27
22
40
11
7
4

Артикул

Название

Примечание

Количество

1

87399501

TANK

11 Gallon

1шт.

2

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

3

9626598

NUT,3/4"-10, GB

3шт.

4

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

5

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

3шт.

6

87582906

HYD CONNECTOR,13/16" - 16 ORFS x 1-1/16" - 12 ORB

1/2-3/4

1шт.

7

87432160

OIL COOLER

1шт.

8

85802801

HYD CONNECTOR,1-11/16-12 ORFS x 1-5/16-12 ORB

1-5/16-12

1шт.

9

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

90 deg 3/4

1шт.

10

47112249

TEE

Swivel 3/4

1шт.

11

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

13

84284566

BRACKET

Filter Painted

1шт.

14

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

15

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

16

84567295

FITTING

45 deg 2 X 1-7/8-12

1шт.

17

87432158

FILTER ASSY

Return

1шт.

17

87432159

ELEMENT

Filter Element

1шт.

18

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

3шт.

19

84363683

BRACKET

PTO Pump

1шт.

20

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

4шт.

21

84143387

HYDRAULIC PUMP,99.12 CC

Two Section

1шт.

22

84351945

CLAMP BRACKET

Hose Clamp Painted

1шт.

23

86521608

FLANGE NUT,Flg, 5/8"-11, G5

1шт.

24

84202833

SUPPORT

Shield Mount

1шт.

25

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

26

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

3/4 -1.0

2шт.

27

84539030

HYDRAULIC HOSE

31.5mm ID X 1150mm

1шт.

28

84539032

HYDRAULIC HOSE

31.5mm ID X 1300mm

1шт.

29

84539034

HYDRAULIC HOSE

19mm ID X 2720mm

2шт.

30

84539045

HYDRAULIC HOSE

19mm ID X 3850mm

2шт.

31

84539048

HYDRAULIC HOSE

10mm ID X 2415mm

1шт.

32

84205274

HYDRAULIC HOSE

50.8 ID X 1900mm

1шт.

33

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

2шт.

34

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

35

9636698

NUT,1/2"-13, GB

4шт.

36

84126824

CLAMP BRACKET

Hose Painted

1шт.

37

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

38

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

39

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

40

84195601

FITTING

90 deg 2.0

1шт.

41

A14141

FLANGE

2шт.

42

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

43

84224796

CONE

PTO Drive With Decal

1шт.

44

355955A1

HARNESS

Cyclo Cooling

1шт.

45

87502039

CABLE TIE

1шт.

46

84197718

MOUNT

Cooler and Tank

1шт.

Выбрано товаров: 47
