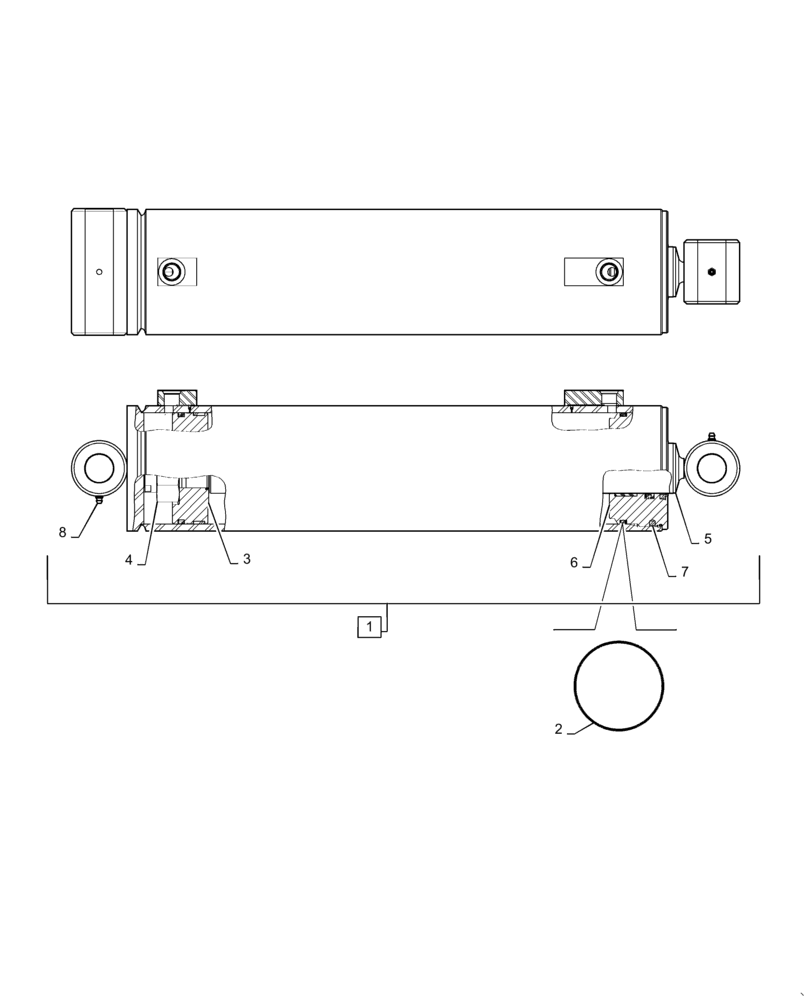

Запчасти Case IH 1265 (35.100.BI[09]) - HYDRAULIC CYLINDER 5.0X17.99 D REPHASE (35) - HYDRAULIC SYSTEMS

1

87746654

HYDRAULIC CYLINDER,Double Acting, 57.15mm Rod, 456.95mm Stroke

5.0X17.99 D REPHASE INCL 3 - 8

1шт.

2

84147399

SEAL KIT

1шт.

3

84147396

PISTON

HYD CYL

1шт.

4

84151721

NUT

1шт.

5

84147397

PISTON ROD

1шт.

6

84147398

HEAD

GLAND

1шт.

7

87447795

INSERT

LOCKING

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 SELF TAPPING

1шт.
