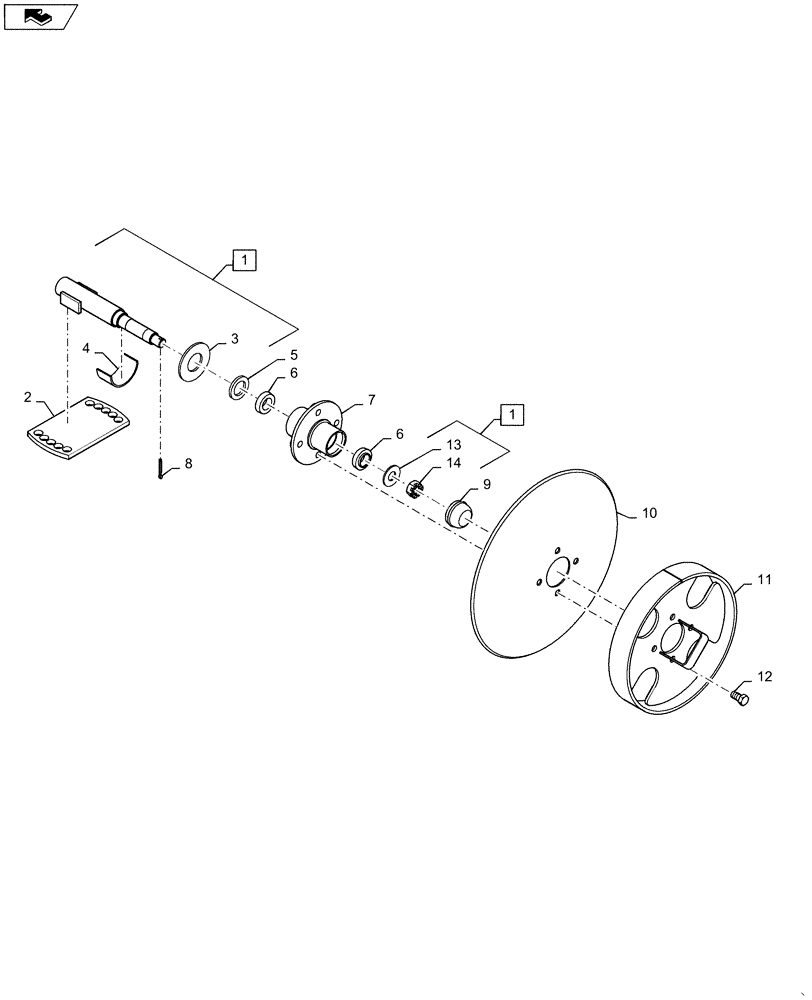

Запчасти Case IH 1265 (79.104.AC[01]) - MARKER DISK ASSY (79) - PLANTING

1

87483942

SPINDLE

Marker Mount Painted Red

1шт.

2

87483943

MOUNTING PLATE

Marker

1шт.

3

23435

WASHER

1.563 ID 3.25

1шт.

4

TM-161-02

GUARD

Gaurd Tube End Marker

1шт.

5

1583

SEAL

Hub Oil

1шт.

6

1582

ROLLER BEARING

Cone

2шт.

7

23515

HUB

H211-9 With Cups

1шт.

8

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

9

23428

HUB CAP

1шт.

10

87557023

DISC

16 Inch Concave Notched

1шт.

11

87557028

RING

Depth Band Red

1шт.

12

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

4шт.

13

1586

WASHER

1шт.

14

1589

SLOTTED NUT,3/4"-16, G2

1шт.
