Запчасти Case IH 1265 (79.104.AB[13]) - ROW UNIT MARKER LEFT FOR 36/20 (79) - PLANTING

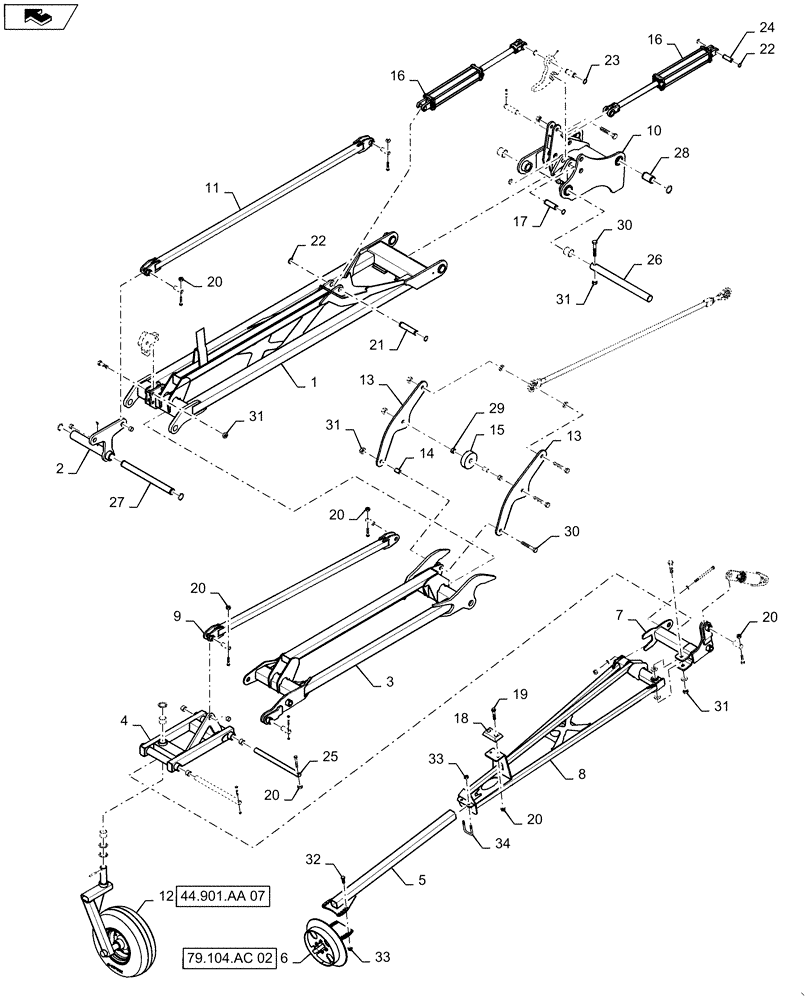

Схема запчастей Case IH 1265 - (79.104.AB[13]) - ROW UNIT MARKER LEFT FOR 36/20 (79) - PLANTING
home
23
28
16
8
20
1
10
20
33
22
25
12
27
15
19
31
13
22
17
30
4
16
5
21
79.104.ac 02
14
20
26
11
34
31
2
13
31
29
3
20
31
7
33
6
30
24
9
20
44.901.aa 07
32
18
20

Артикул

Название

Примечание

Количество

1

87481535

FRAME

Marker Inner Left Painted

1шт.

2

87735027

IDLER

Marker Painted

1шт.

3

87481542

FRAME

Marker Mid Left Painted

1шт.

4

84225119

FRAME

Marker Knuckle Left Painted

1шт.

5

87543302

ARM

Marker Extention

1шт.

6

NS

NOT SERVICED

Disk Assy See Fig 79.104.AC[02]

1шт.

7

84283532

FRAME

Outer Brake Away Left

1шт.

8

84283559

FRAME

Marker Outer Left Painted

1шт.

9

87481529

FRAME

Link Outer Painted

1шт.

10

84283526

KNUCKLE

Marker Inner Left

1шт.

11

87481532

FRAME

Link Inner Painted

1шт.

12

NS

NOT SERVICED

Caster Wheel See Fig 44.901.AA[07]

1шт.

13

84273914

LINKAGE

Connecting Painted

2шт.

14

87486584

SPACER

25.4 X 42 Chrome

2шт.

15

87486586

ROLLER

40W X 127

1шт.

16

84282605

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5 X 16 Nitro

2шт.

17

84194685

PIN

31.75 X 95

1шт.

18

87505918

BUMPER

Rubber

3шт.

19

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

20

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

14шт.

21

87420397

PIN,25.4mm OD x 122mm L

1 X 4.188

1шт.

22

87019495

SNAP RING,#98, Ext

4шт.

23

86625148

SNAP RING,#125, Ext

4шт.

24

84361344

PIN

25.4 X 73.15

1шт.

25

87735019

PIN

31.75 X 454.3

2шт.

26

87735017

PIN

50.8 X 594

1шт.

27

87735018

PIN

44.45 X 493.6

1шт.

28

87735022

PIN

50.8 X 69.5

2шт.

29

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X.75

2шт.

30

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3шт.

31

9626598

NUT,3/4"-10, GB

7шт.

32

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

33

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

34

1344524C1

U-BOLT

1/2 X 2-1/2 X 3-1/2

1шт.

Выбрано товаров: 34
