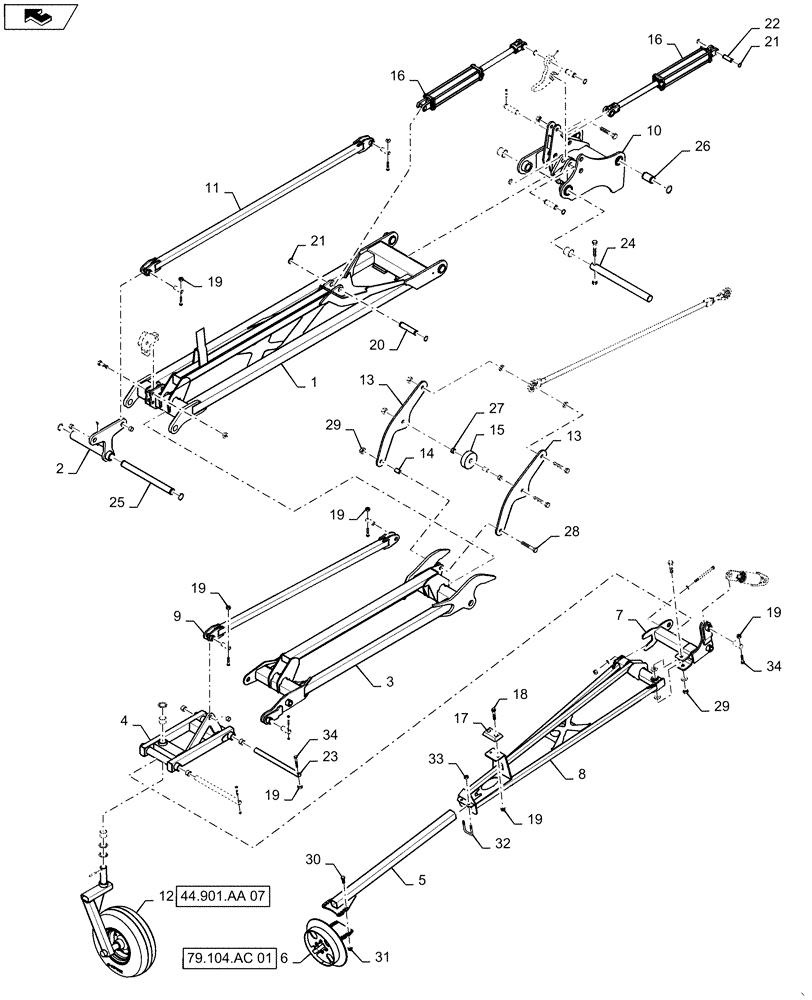

Запчасти Case IH 1265 (79.104.AB[11]) - ROW UNIT MARKER RIGHT FOR 36/22 (79) - PLANTING

1

87691219

FRAME

Marker Inner Right Painted

1шт.

2

87735027

IDLER

Marker Painted

1шт.

3

87691220

FRAME

Marker Mid Right Painted

1шт.

4

84227750

FRAME

Marker Knuckle Right Painted

1шт.

5

87486578

FRAME

Marker Extention Painted

1шт.

6

NS

NOT SERVICED

Dick Assy See Fig 79.104.AC[02]

1шт.

7

84283554

FRAME

Outer Brake Away Right Hand

1шт.

8

84283556

FRAME

Marker Outer Right Painted

1шт.

9

87481529

FRAME

Link Outer Painted

1шт.

10

84283547

KNUCKLE

Marker Inner Right Painted

1шт.

11

87481532

FRAME

Link Inner Painted

1шт.

12

NS

NOT SERVICED

Caster Wheel See Fig 44.901.AA[07]

1шт.

13

84273914

LINKAGE

Conecting Painted

2шт.

14

87486584

SPACER

25.4 X 42 chrome

2шт.

15

87486586

ROLLER

40W X 127

1шт.

16

84282605

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5 X 16 Nitro

2шт.

17

87505918

BUMPER

Rubber

3шт.

18

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

19

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

14шт.

20

87420397

PIN,25.4mm OD x 122mm L

1 X 4.188

1шт.

21

87019495

SNAP RING,#98, Ext

4шт.

22

84361344

PIN

25.4 X 73.15

1шт.

23

87735019

PIN

31.75 X 454.3

2шт.

24

87735017

PIN

50.8 X 594

1шт.

25

87735018

PIN

44.45 X 493.6

1шт.

26

87735022

PIN

50.8 X 69.5

2шт.

27

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X .75

2шт.

28

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3шт.

29

9626598

NUT,3/4"-10, GB

7шт.

30

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

31

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

32

1344524C1

U-BOLT

1/2 X 2- 1/2 X 3-1/2

1шт.

33

280431

NUT,1/2"-13, G5

2шт.

34

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

4шт.
