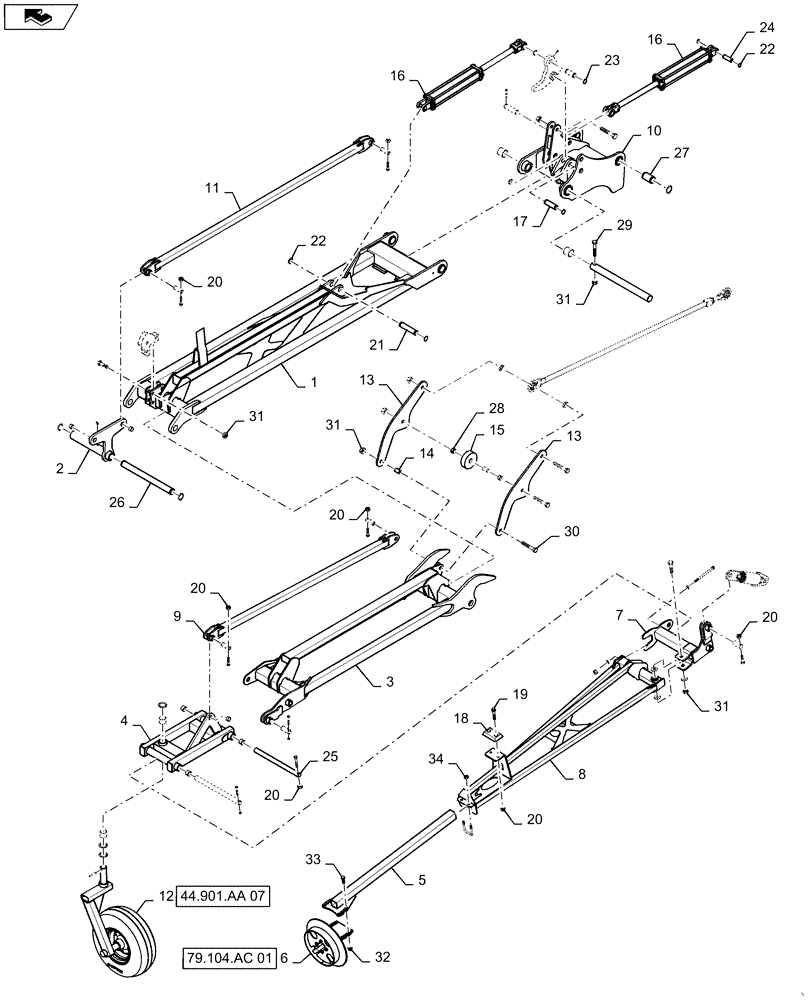

Запчасти Case IH 1265 (79.104.AB[05]) - ROW UNIT MARKER LEFT FOR 32/30 (79) - PLANTING

1

87486577

FRAME

Marker Inner Left Painted

1шт.

2

87735027

IDLER

Marker Painted

1шт.

3

87726253

FRAME

Marker Mid Left Painted

1шт.

4

84225119

FRAME

Marker Knuckle Left Painted

1шт.

5

87486578

FRAME

Marker Extention Painted

1шт.

6

NS

NOT SERVICED

Disk Assy See Fig 79.104.AC[01]

1шт.

7

84283532

FRAME

Outer Brake Away Left Painted

1шт.

8

84283534

FRAME

Marker Outer Left Painted

1шт.

9

87486580

FRAME

Link Outer Painted

1шт.

10

84283526

KNUCKLE

Marker Inner Left Painted

1шт.

11

87486579

FRAME

Link Inner Painted

1шт.

12

NS

NOT SERVICED

Caster Wheel Assy See Fig 44.901.AA[07]

1шт.

13

84273914

LINKAGE

Connecting Painted

2шт.

14

87486584

SPACER

25.4 X 42

2шт.

15

87486586

ROLLER

40W X 127

1шт.

16

84282604

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5 X 16 Nitro

2шт.

17

84194685

PIN

31.75 X 95

1шт.

18

87505918

BUMPER

Rubber Marker

3шт.

19

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

20

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

14шт.

21

87420397

PIN,25.4mm OD x 122mm L

1 X 4.188

1шт.

22

87019495

SNAP RING,#98, Ext

4шт.

23

86625148

SNAP RING,#125, Ext

4шт.

24

84361344

PIN

25.4 X 73.15

1шт.

25

87735019

PIN

31.75 X 454.3

2шт.

26

87735018

PIN

44.45 X 493.6

1шт.

27

87735022

PIN

50.8 X 69.5

2шт.

28

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X .75

2шт.

29

47390930

BOLT

7/8 -9X 4 - 1/2

1шт.

30

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3шт.

31

9626598

NUT,3/4"-10, GB

7шт.

32

280658

NUT,7/8"-9, GB

2шт.

33

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

34

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.
