Запчасти Case IH 1265 (79.104.AB[03]) - ROW UNIT MARKER RIGHT FOR 36/30 (79) - PLANTING

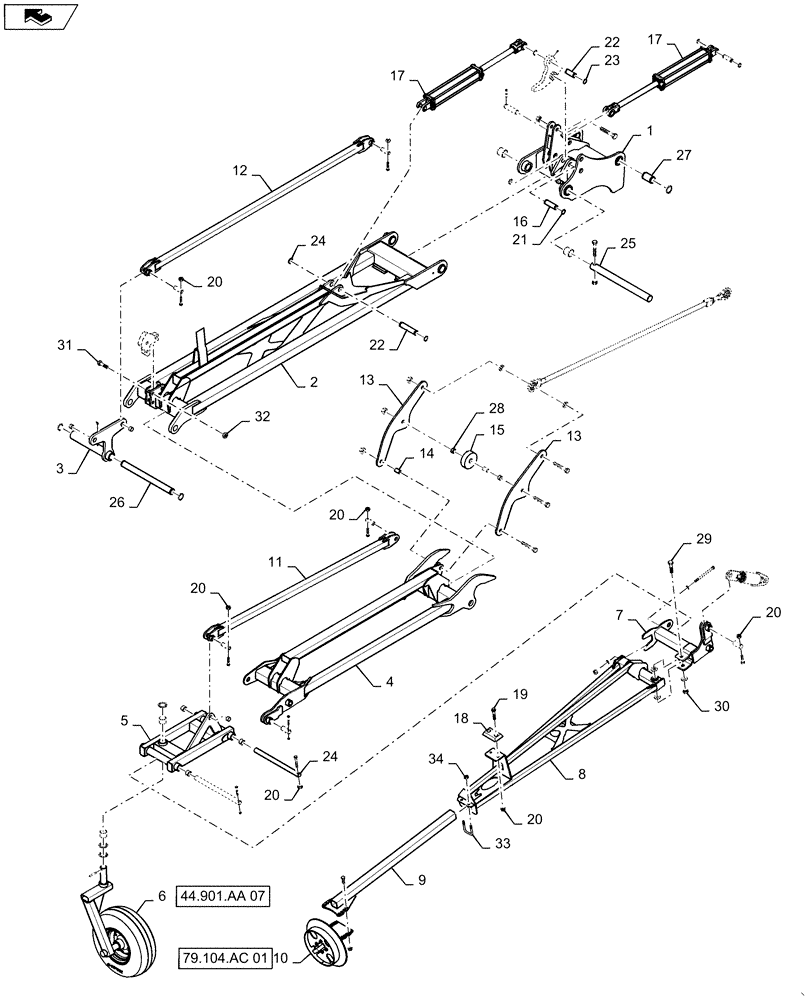

Схема запчастей Case IH 1265 - (79.104.AB[03]) - ROW UNIT MARKER RIGHT FOR 36/30 (79) - PLANTING
31
29
7
21
14
33
22
9
20
6
20
13
28
22
44.901.aa 07
17
15
11
2
79.104.ac 01
12
4
5
20
20
32
34
16
19
17
10
24
20
30
18
13
25
3
1
home
8
27
24
20
26
23

Артикул

Название

Примечание

Количество

1

84283547

KNUCKLE

Marker Inner Right Painted

1шт.

2

84156366

FRAME

Marker Inner Right Painted

1шт.

3

87735027

IDLER

Painted

1шт.

4

84156363

FRAME

Marker Mid Right Painted

1шт.

5

84227750

FRAME

Marker Knuckle

1шт.

6

NS

NOT SERVICED

Caster Wheel Assy See figure 44.901.AA[07]

1шт.

7

84283554

FRAME

Outer Brakeaway Right Painted

1шт.

8

84283567

FRAME

Marker Outer Right Painted

1шт.

9

87486578

FRAME

Marker EXT

1шт.

10

NS

NOT SERVICED

Disk Assy See Figure 79.104.AC[01]

1шт.

11

87486580

FRAME

Link Outer Painted

1шт.

12

87486579

FRAME

Link Inner Painted

1шт.

13

84273914

LINKAGE

Connecting Painted

2шт.

14

87486584

SPACER

25.4 X 42 Chrome

2шт.

15

87486586

ROLLER

40W X 127

1шт.

16

84194685

PIN

31.75 X 95

1шт.

17

84282604

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5 X 16 Nitro

2шт.

18

87505918

BUMPER

Rubber Marker

3шт.

19

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

20

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

14шт.

21

86625148

SNAP RING,#125, Ext

4шт.

22

84361344

PIN

25.4 X 73.15

1шт.

23

87019495

SNAP RING,#98, Ext

4шт.

24

87735019

PIN

31.75 X 454.3

2шт.

25

87735017

PIN

50.8 X 594

1шт.

26

87735018

PIN

44.45 X 493.6

1шт.

27

87735022

PIN

50.8 X 69.5

2шт.

28

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X .75

2шт.

29

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3шт.

30

9626598

NUT,3/4"-10, GB

7шт.

31

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

32

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

33

1344524C1

U-BOLT

1/2 X 2-1/2 X 3-1/2

1шт.

34

280431

NUT,1/2"-13, G5

2шт.

Выбрано товаров: 34
