Запчасти Case IH 1265 (79.104.AB[01]) - ROW UNIT MARKER LEFT FOR 36/30 (79) - PLANTING

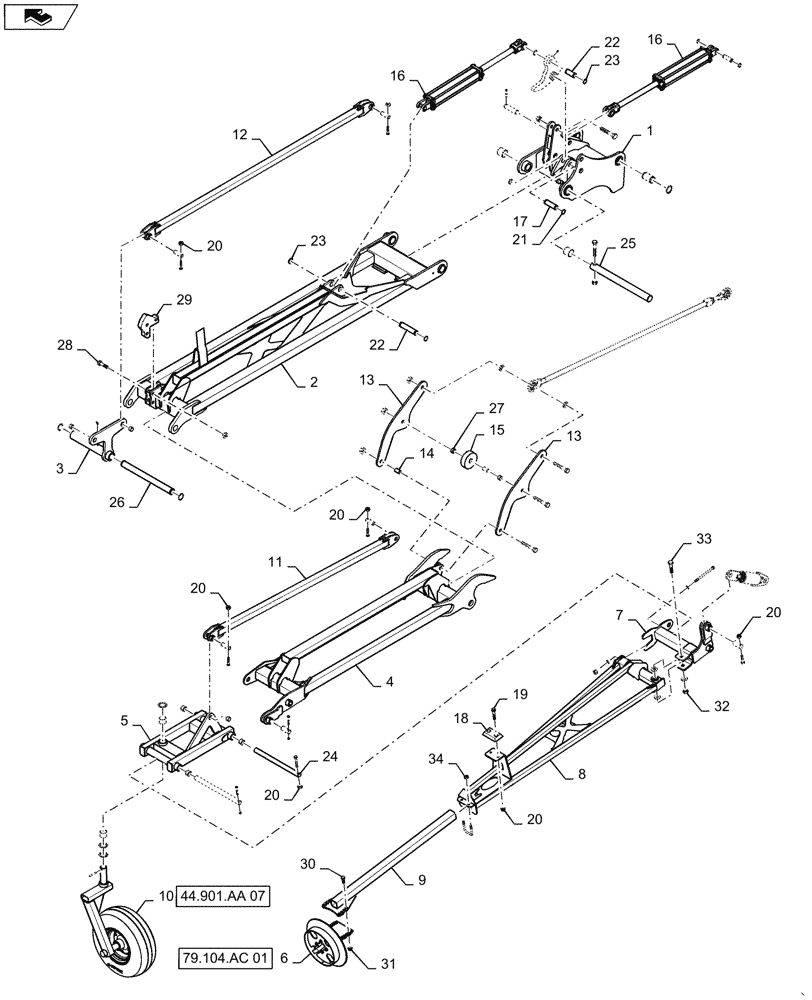

Схема запчастей Case IH 1265 - (79.104.AB[01]) - ROW UNIT MARKER LEFT FOR 36/30 (79) - PLANTING
44.901.aa 07
11
25
20
24
22
4
23
27
17
20
8
18
home
13
20
28
14
12
2
30
33
3
5
22
10
20
13
20
26
34
21
23
16
29
20
15
19
1
7
6
16
32
9
31
79.104.ac 01

Артикул

Название

Примечание

Количество

1

84283526

KNUCKLE

Marker Inner Left Painted

1шт.

2

87486577

FRAME

Marker Inner Left Painted

1шт.

3

87735027

IDLER

Marker Painted

1шт.

4

87726253

FRAME

Marker Middle Left Painted

1шт.

5

84225119

FRAME

Marker Knuckle Left Painted

1шт.

6

NS

NOT SERVICED

Caster Wheel Assy See Figure 44.901.AA[07]

1шт.

7

84283532

FRAME

Outer Brake Away Left Painted

1шт.

8

84283566

FRAME

Marker Outer Left Painted

1шт.

9

87486578

FRAME

Marker Extention Painted

1шт.

10

NS

NOT SERVICED

Disk Assy See Figure 79.104.AC[01]

1шт.

11

87486580

FRAME

Link Outer Painted

1шт.

12

87486579

FRAME

Link Inner Painted

1шт.

13

84273914

LINKAGE

Connecting Painted

2шт.

14

87486584

SPACER

25.4 X 42 Chrome

2шт.

15

87486586

ROLLER

40W X 127

1шт.

16

84282604

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5 X 16 Nitro

2шт.

17

84194685

PIN

31.75 X 95

1шт.

18

87505918

BUMPER

Rubber

3шт.

19

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

20

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

14шт.

21

86625148

SNAP RING,#125, Ext

4шт.

22

84361344

PIN

25.4 X 73.15

1шт.

23

87019495

SNAP RING,#98, Ext

4шт.

24

87735019

PIN

31.75 X 454.3

2шт.

25

87735018

PIN

44.45 X 493.6

1шт.

26

87735022

PIN

50.8 X 69.5

2шт.

27

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X .75

2шт.

28

47390930

BOLT

7/8-9X4 -1/2

2шт.

29

84171852

LINKAGE

Tube Painted

1шт.

30

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3шт.

31

9626598

NUT,3/4"-10, GB

7шт.

32

280658

NUT,7/8"-9, GB

2шт.

33

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

34

86521608

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

Выбрано товаров: 34
