(79.103.AA[18]) - ROW UNIT VACUUM HOSE MIDDLE RIGHT FOR 32/30

Запчасти Case IH 1265 (79.103.AA[18]) - ROW UNIT VACUUM HOSE MIDDLE RIGHT FOR 32/30 (79) - PLANTING

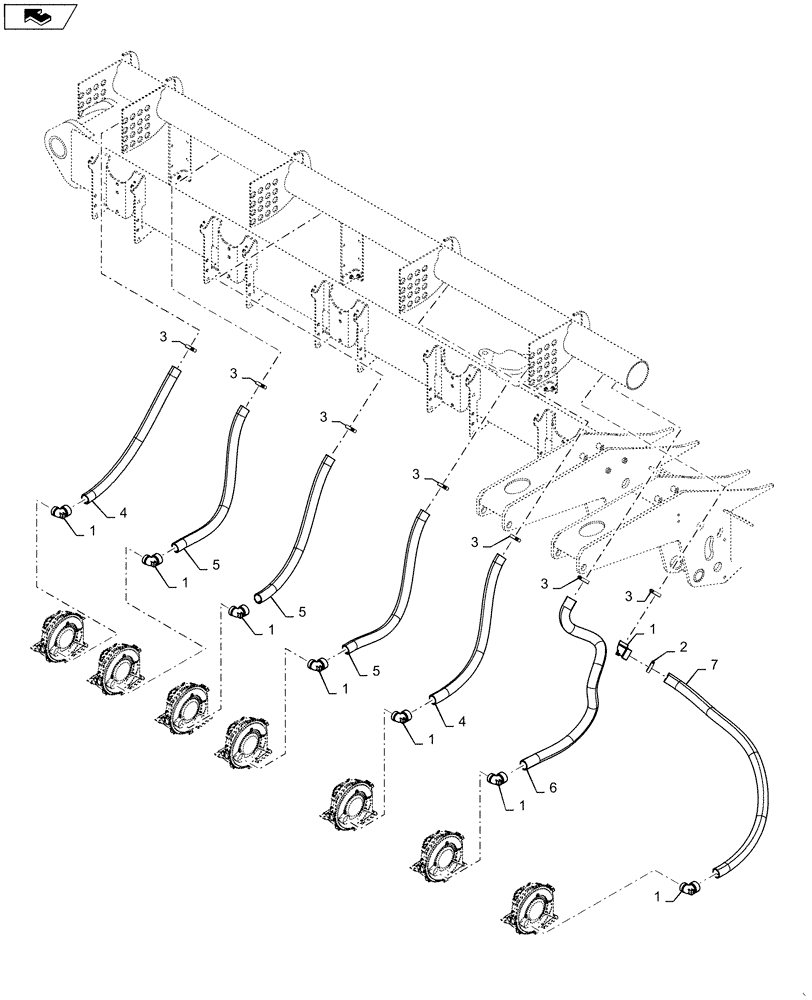

Схема запчастей Case IH 1265 - (79.103.AA[18]) - ROW UNIT VACUUM HOSE MIDDLE RIGHT FOR 32/30 (79) - PLANTING
5
3
1
1
1
1
4
5
home
3
3
1
1
3
1
2
1
3
3
3
4
6
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84416530

90 ELBOW

50mm

8шт.

2

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

1шт.

3

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

7шт.

4

87501726

HOSE

50 Foot Bulk Roll Cut To 1157mm

2шт.

5

87501726

HOSE

50 Foot Bulk Roll Cut To 1307mm

3шт.

6

87501726

HOSE

50 Foot Bulk Hose Cut To 1520mm

1шт.

7

87501726

HOSE

50 Foot Bulk Hose Cut To 2006mm

1шт.

Выбрано товаров: 7
