(79.103.AA[15]) - ROW UNIT VACUUM HOSE OUTER LEFT 90

Запчасти Case IH 1265 (79.103.AA[15]) - ROW UNIT VACUUM HOSE OUTER LEFT 90 (79) - PLANTING

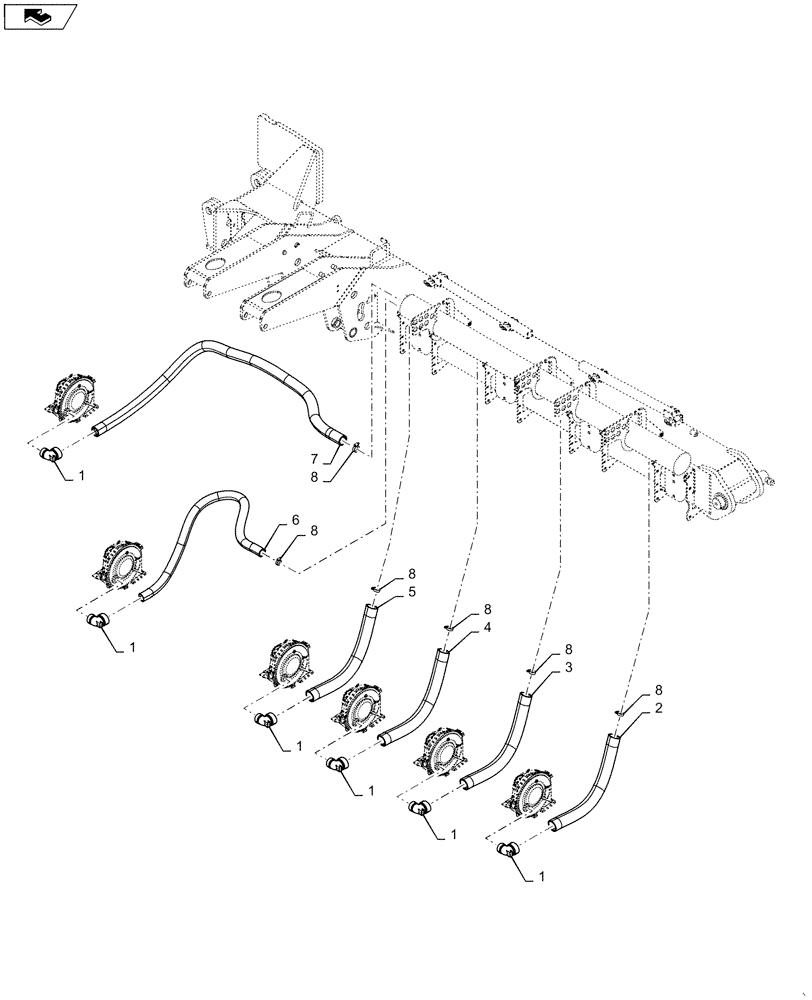

Схема запчастей Case IH 1265 - (79.103.AA[15]) - ROW UNIT VACUUM HOSE OUTER LEFT 90 (79) - PLANTING
1
1
8
home
1
2
3
1
7
8
1
8
6
8
8
5
4
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84416530

90 ELBOW

6шт.

2

87501726

HOSE

50 Ft Bulk Roll, Cut To 810MM

1шт.

3

87501726

HOSE

50 Ft Bulk Roll, Cut To 810MM

1шт.

4

87501726

HOSE

50 Ft Bulk Roll, Cut To 810MM

1шт.

5

87501726

HOSE

50 Ft Bulk Roll, Cut To 927MM

1шт.

6

87501726

HOSE

50 Ft Bulk Roll, Cut To 1930MM

1шт.

7

87501726

HOSE

50 Ft Bulk Roll, Cut To 2410MM

1шт.

8

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

6шт.

Выбрано товаров: 8
