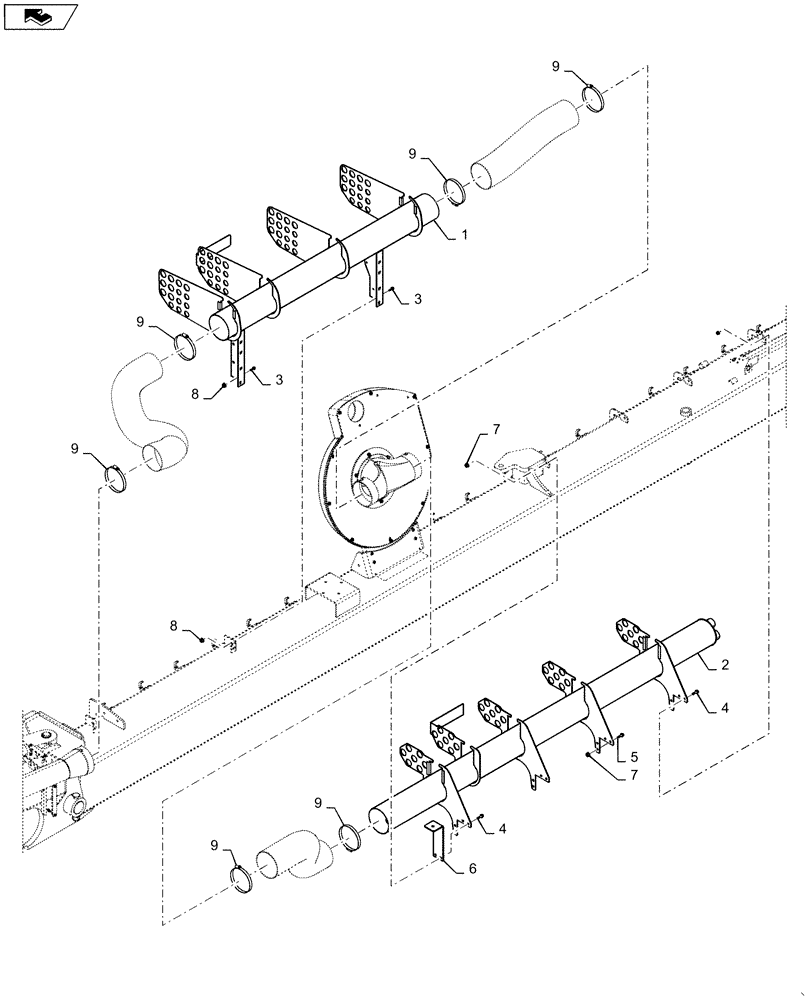

Запчасти Case IH 1265 (79.103.AA[03]) - LEFT OUT WING VACUUM DUCT 66 FOOT FOR 36/22 (79) - PLANTING

1

84518809

DUCT

Vacuum Out Wing Left 66 Foot

1шт.

2

84518811

DUCT

Vacuum Out Wing Left 66 Foot

1шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

5

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

6

84202599

MOUNT

Hose

1шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

9шт.

8

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

9

84517617

HOSE CLAMP,5.75" - 6.62", Worm Gear

6.625 X 5.75

6шт.
