(79.103.AA[02]) - LEFT OUT WING VACUUM DUCT 90 FOOT FOR 36/30, 32/30

Запчасти Case IH 1265 (79.103.AA[02]) - LEFT OUT WING VACUUM DUCT 90 FOOT FOR 36/30, 32/30 (79) - PLANTING

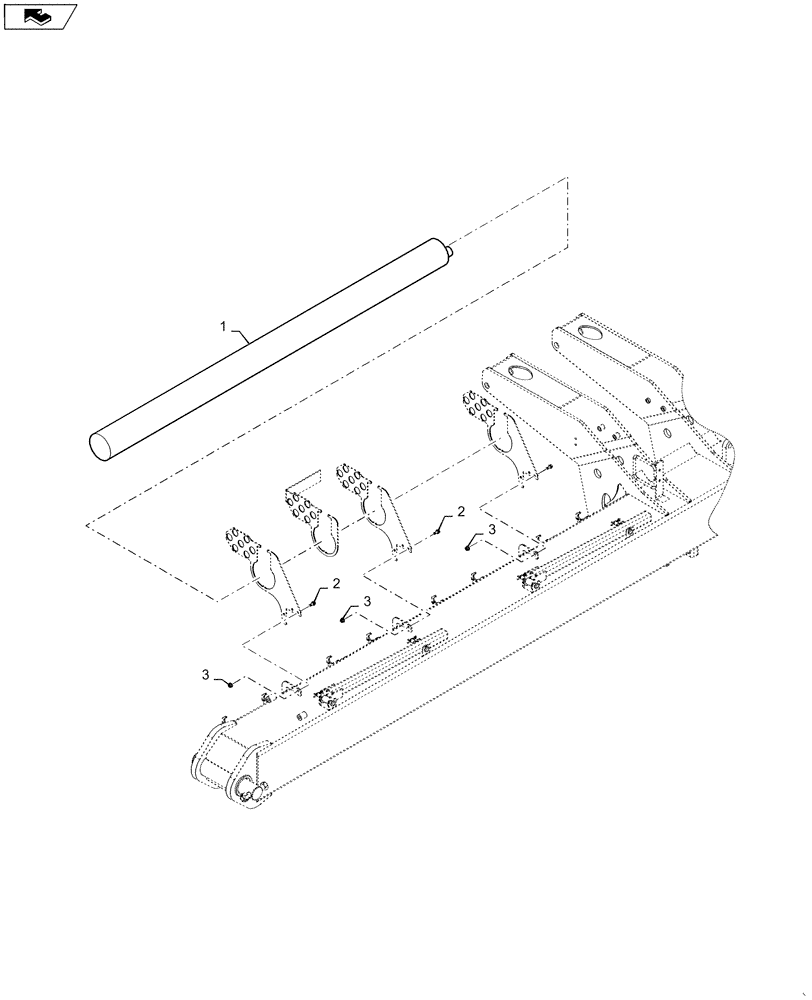

Схема запчастей Case IH 1265 - (79.103.AA[02]) - LEFT OUT WING VACUUM DUCT 90 FOOT FOR 36/30, 32/30 (79) - PLANTING
2
3
1
3
2
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84518286

DUCT

Vac Out Wing Left 90 Foot Painted Red

1шт.

2

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

Выбрано товаров: 3
