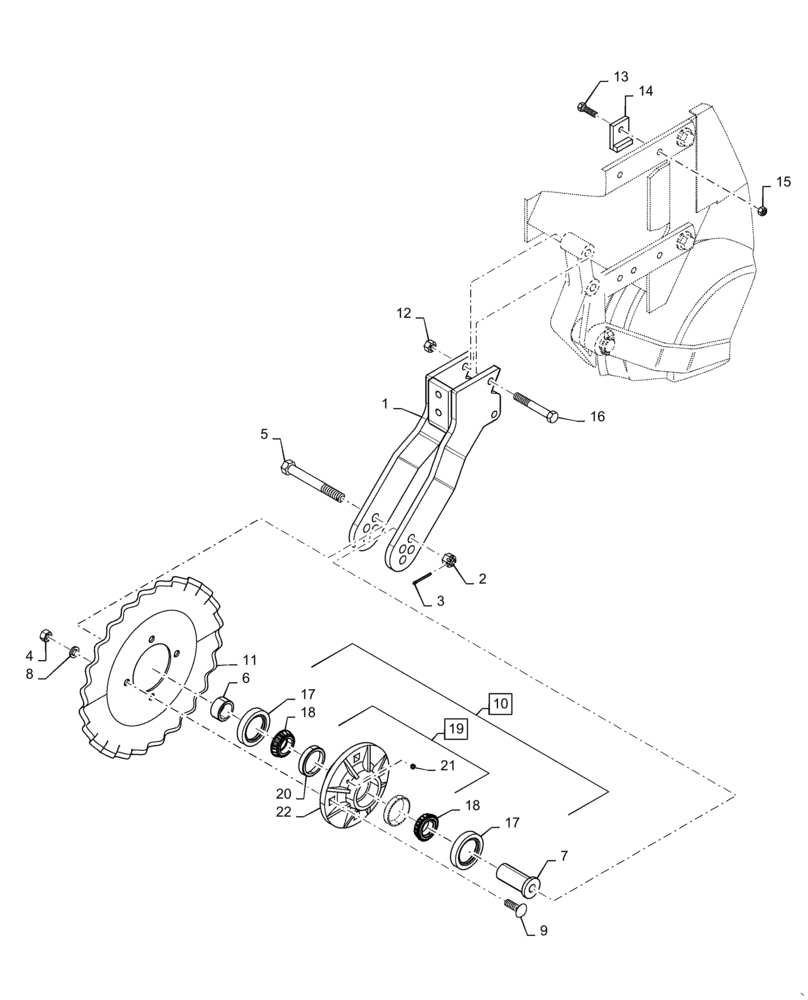

Запчасти Case IH 1265 (75.200.AB[01]) - ROW UNIT MOUNTED COLTER 25 WAVE (75) - SOIL PREPARATION

1

87501828

BRACKET

Coulter

1шт.

2

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

3

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

4

492-11050

LOCK WASHER,1/2"

4шт.

5

87413978

BOLT

5/8 X 5 Grade 5

1шт.

6

87413973

SPACER

Seal

1шт.

7

87413975

SPACER

Hub Insert

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

4шт.

9

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

10

87413974

HUB

Incl 17 - 19

1шт.

11

431542A1

PLOW DISC

.157 X 14.56 25 Flute Blade

1шт.

12

231-4148

NUT,1/2"-13, GB

2шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

14

129621A1

STOP

2шт.

15

231-4146

NUT,3/8"-16, GB

2шт.

16

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

17

652769R91

OIL SEAL

Bearing

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

19

1344512C1

HUB

Pressed Incl 20 - 22

1шт.

20

651817R1

BEARING CUP

2.33 OD X .465W TM LM67010

2шт.

20

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

NSS

NOT SOLD SEPARAT

Incl in 19

1шт.
