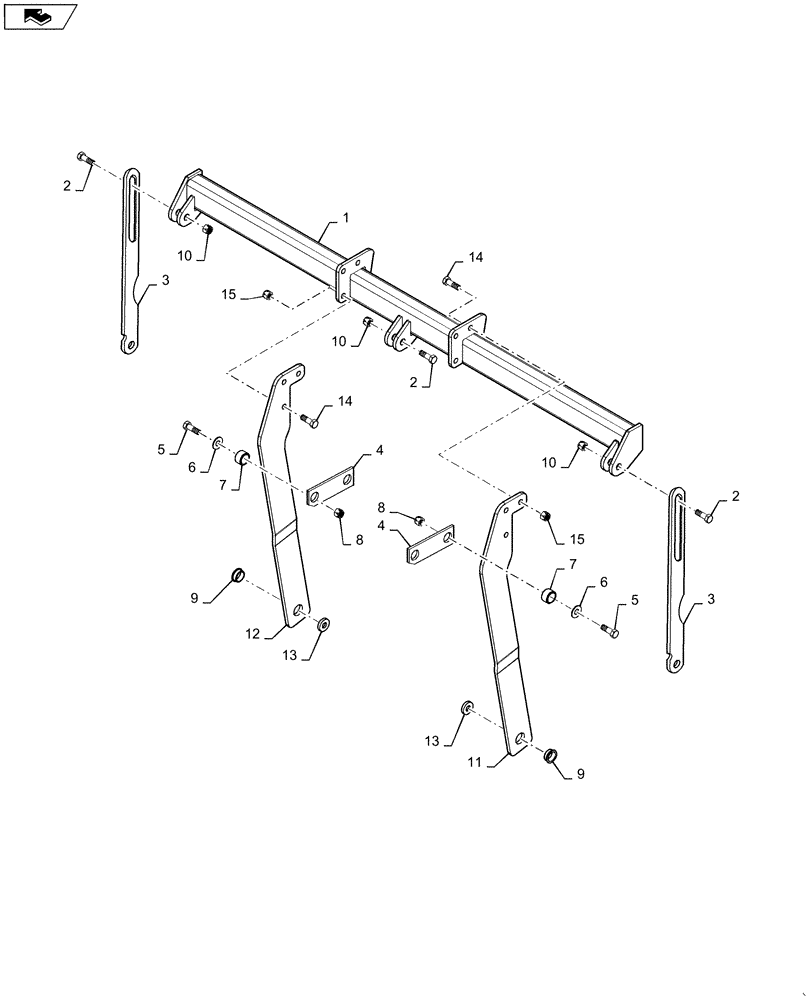

Запчасти Case IH 1265 (75.200.AA[04]) - ROW UNIT LIFT 20,22,30 INCH (75) - SOIL PREPARATION

1

84364512

FRAME

20/22 inch For 36/22, 36/20

1шт.

1

84362581

FRAME

30 Inch For 36/30, 32/30

1шт.

2

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

3шт.

3

84142451

SUPPORT

Lift Row Unit

3шт.

4

87708934

WEAR PAD

Lift Link

2шт.

5

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

7

7995

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X .75

4шт.

8

9636698

NUT,1/2"-13, GB

4шт.

9

87019495

SNAP RING,#98, Ext

2шт.

10

19670

NUT,5/8"-11, GB

3шт.

11

84367260

PLATE

RU Lift Left Painted

1шт.

12

84367261

PLATE

RU Lift Right Painted

1шт.

13

87708933

BUSHING

26 mm

2шт.

14

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

6шт.

15

88871

NUT,1/2"-13, GC

6шт.
