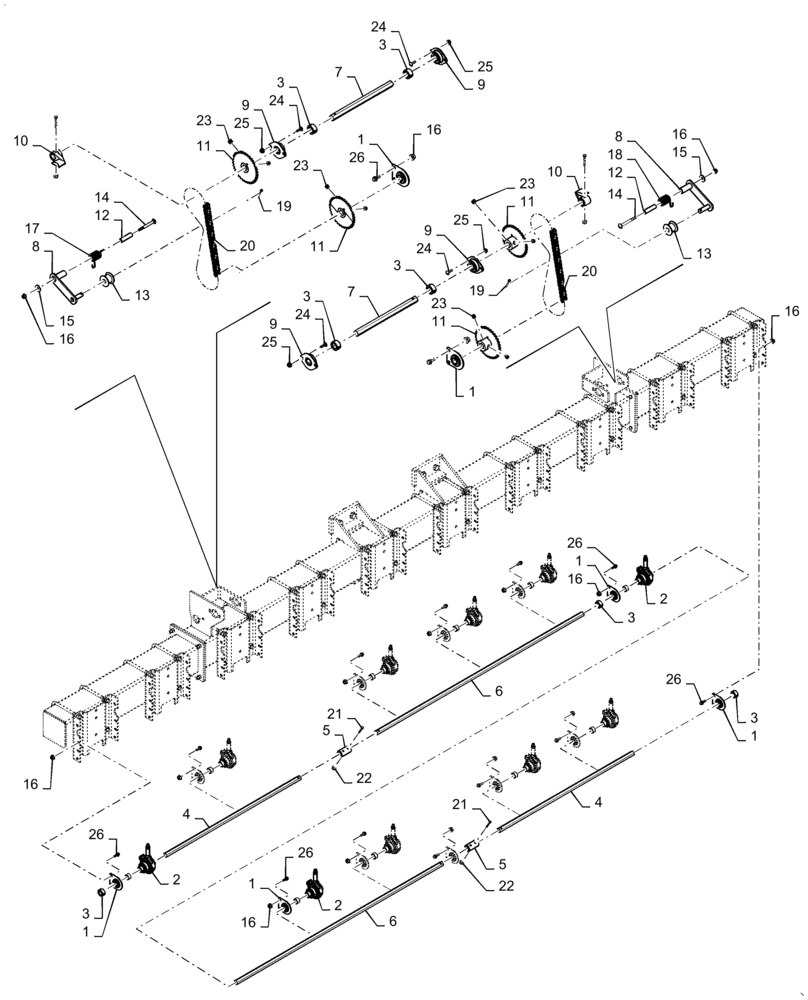

Запчасти Case IH 1265 (75.100.AD[03]) - CHAIN DRIVE CLUTCH MIDDLE 66 FOOT (75) - SOIL PREPARATION

1

102724A2

BALL BEARING,22.6mm ID

Bearing Hanger

13шт.

2

84133322

CLUTCH

Seed Drive

10шт.

3

22224

COLLAR

7/8" Hex bore

8шт.

4

84130050

SHAFT

Input 7/8" Hex

2шт.

5

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

Seed Drive

2шт.

6

84130038

SHAFT

Input 7/8"

2шт.

7

87495544

SHAFT

Input 7/8"

2шт.

8

87550916

TENSIONER

Chain Red

2шт.

9

134158C92

BALL BEARING,22.5mm ID

4шт.

10

87539852

COUPLING

Cross Over Drive

2шт.

11

353037A1

SPROCKET

34 Tooth

4шт.

12

87505783

SLEEVE

Tensioner Pivot

2шт.

13

1277726C1

ROLLER,48mm OD x 34mm L

Idler

2шт.

14

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

2шт.

15

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

2шт.

16

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

28шт.

17

87505794

TORSION SPRING

Idler

1шт.

18

87758366

TORSION SPRING

Idler

1шт.

19

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

20

84536442

CHAIN,#40

#40 10 Foot Roll

2шт.

21

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

6шт.

22

20356

NUT,1/4"-20, GB

6шт.

23

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

24

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

25

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

26

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

26шт.
