Запчасти Case IH 1265 (63.100.AE[05]) - LIQUID FERTILIZER DELIVERY (63) - CHEMICAL APPLICATORS

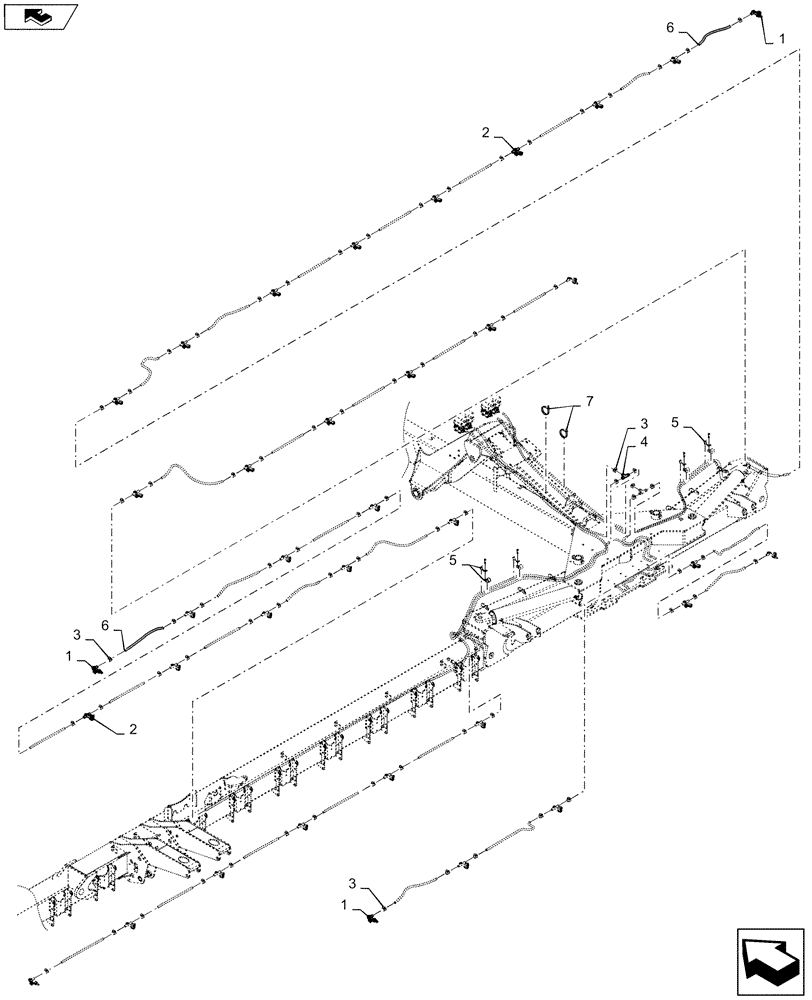

Схема запчастей Case IH 1265 - (63.100.AE[05]) - LIQUID FERTILIZER DELIVERY (63) - CHEMICAL APPLICATORS
2
1
2
5
1
home
3
4
5
7
3
3
6
6
1

Артикул

Название

Примечание

Количество

1

241019A1

NOZZLE

Check Valve Elbow

1шт.

2

241017A1

NOZZLE

Check Valve Tee

1шт.

3

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

#10

1шт.

4

87669667

FITTING,3/4" Hose Barb Tee

Hose Barb

1шт.

5

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

241923A1

HOSE

100 Foot Bulk Hose Cut To Length Needed

1шт.

7

87502039

CABLE TIE

Medium

1шт.

Выбрано товаров: 7
