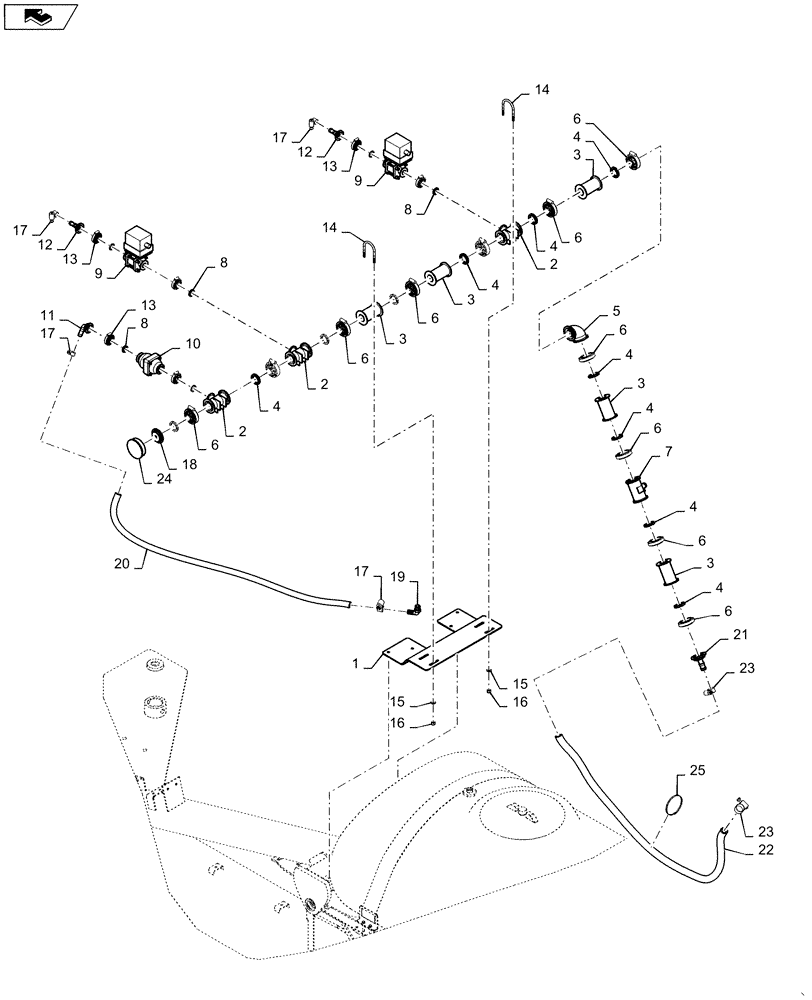

Запчасти Case IH 1265 (63.100.AE[04]) - LIQUID FERTILIZER APLICATION WITH TANKS FOR 36/22, 36/20 (63) - CHEMICAL APPLICATORS

1

84160825

SUPPORT

Fertilizer Valve Mount Painted

1шт.

2

86984089

TEE,2" Port x 1" Flanged Tee

2" X 2 " X 1"

3шт.

3

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

2" Manifold Full Port

5шт.

4

408348A1

GASKET

1- 1/2

11шт.

5

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

2" Manifold 90 Deg Port Flange

1шт.

6

406040A1

CLAMP,90-100 in/lbs

2"

11шт.

7

87504660

METER

Flow

1шт.

8

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1"

6шт.

9

406039A1

SOLENOID VALVE,1" Electric Valve

1" Electric Ball

2шт.

10

87505937

CHECK VALVE,1"

100 PSI

1шт.

11

405785A1

ELBOW

1" Manifold X 3/4" 90 Deg

1шт.

12

408351A1

FITTING,1" Flange x 3/4" Hose Barb

1" X3/4

2шт.

13

406041A1

CLAMP,58.51mm

1"

6шт.

14

87413269

U-BOLT

3/8 X 2.87 X 4

2шт.

15

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

16

86985855

LOCK NUT

3/8

4шт.

17

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

#10

4шт.

18

87670356

PLUG,2" Flange Plug with 1/4" FPT

2" Plug With 1/4" Gauge Port

1шт.

19

405778A1

ELBOW

3/4" X 3/4" Thread

1шт.

20

241923A1

HOSE

100 Foot Bulk Roll Cut To Length 1635mm

1шт.

21

86987616

FITTING,2" Flange x 1" Hose Barb

2" X 1"

1шт.

22

87397033

HOSE

1"

1шт.

23

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

24

86990418

GAUGE

4' 0 - 100 PSI

1шт.

25

87502039

CABLE TIE

Medium

1шт.
