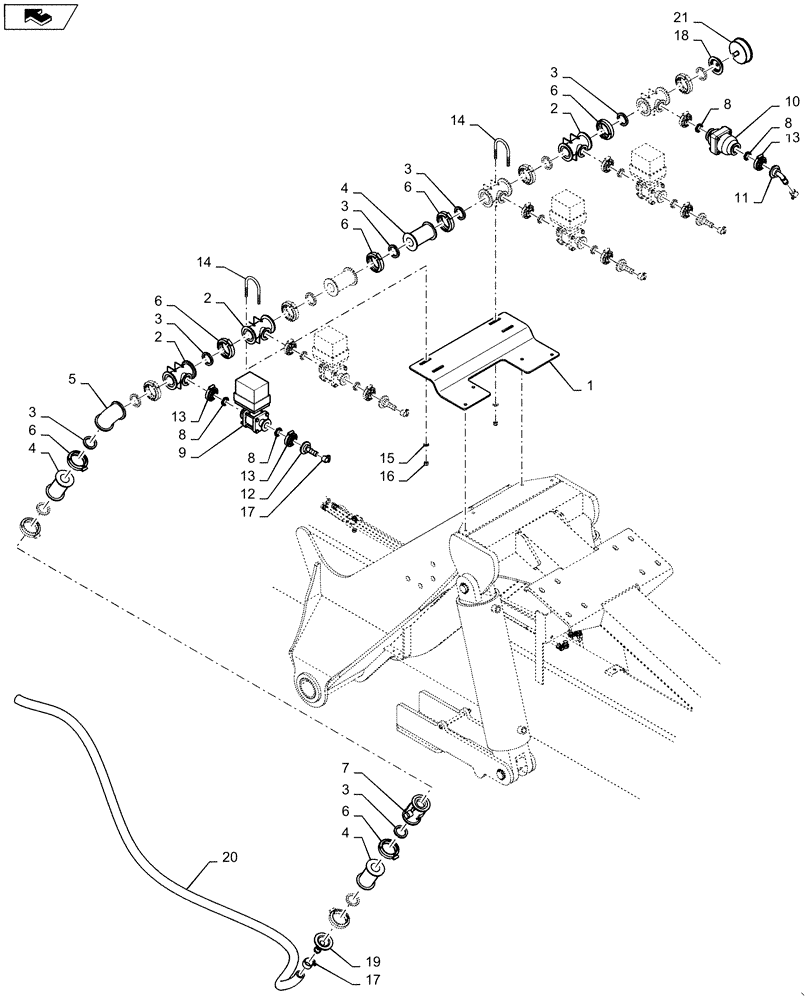

Запчасти Case IH 1265 (63.100.AE[01]) - LIQUID FERTILIZER APLICATION NO TANKS FOR 36/30, 32/30 (63) - CHEMICAL APPLICATORS

1

84160825

SUPPORT

Fertilizer Valve Painted

1шт.

2

86984089

TEE,2" Port x 1" Flanged Tee

Fitting 2" X 2" X 1"

5шт.

3

408348A1

GASKET

1-1/2

12шт.

4

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

Fitting 2" Manifold Full Port Flange

4шт.

5

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

2" Manifold X 90 deg

1шт.

6

406040A1

CLAMP,90-100 in/lbs

2'

12шт.

7

87504660

METER

Flow

1шт.

8

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1 Inch

10шт.

9

406039A1

SOLENOID VALVE,1" Electric Valve

1" Electric Ball

4шт.

10

87505937

CHECK VALVE,1"

100 PSI

1шт.

11

405785A1

ELBOW

1 X 3/4 X 90deg

1шт.

12

408351A1

FITTING,1" Flange x 3/4" Hose Barb

1 X 3/4

4шт.

13

406041A1

CLAMP,58.51mm

1 Inch

10шт.

14

87413269

U-BOLT

3/8 X 2.87 X 4

2шт.

15

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

16

86985855

LOCK NUT

3/8 X 2.87 W 4D

4шт.

17

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

# 10

6шт.

18

87670356

PLUG,2" Flange Plug with 1/4" FPT

2" With 1/4" Gauge Port

1шт.

19

86987616

FITTING,2" Flange x 1" Hose Barb

2" X 1"

1шт.

20

84223252

1 In X 2700mm

1шт.

21

86990418

GAUGE

Pressure 4" 0-100 Psi

1шт.
