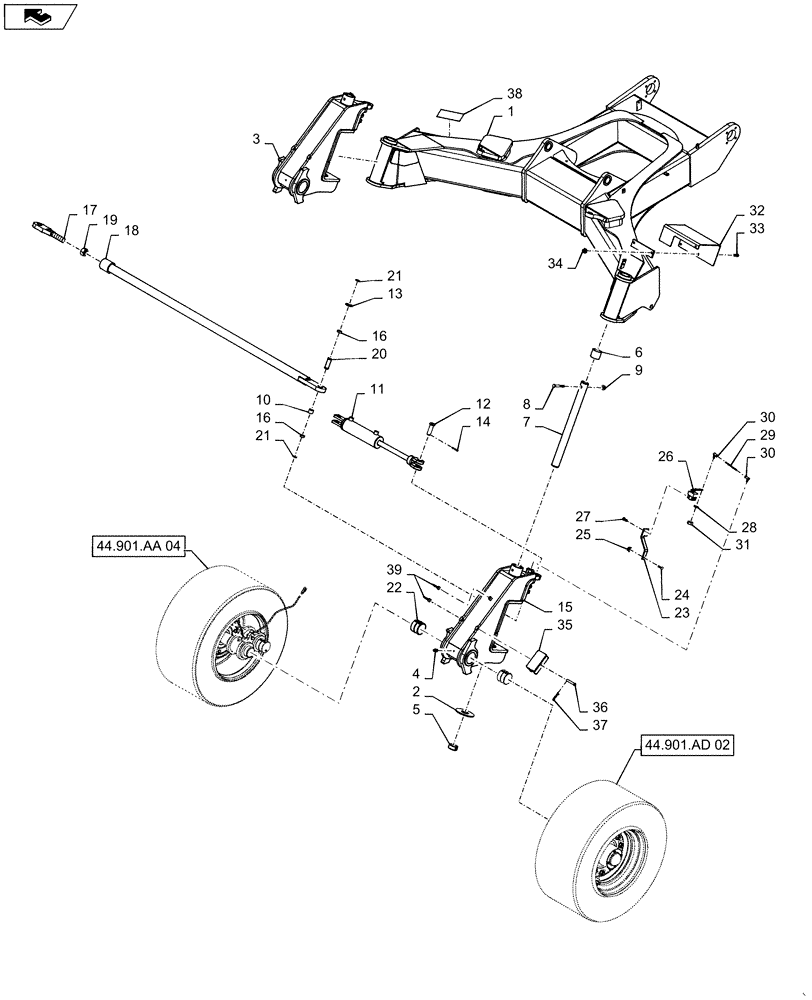

Запчасти Case IH 1265 (44.901.AA[06]) - STEERING CARRIER (44) - WHEELS

1

84227946

FRAME

Carrier 30 Inch Incl Decals For 36/30, 32/30

1шт.

1

84227945

FRAME

Carrier 22 Inch Incl Decals For 36/22

1шт.

1

84227944

FRAME

Carrier 20 Inch Incl Decals For 36/20

1шт.

2

84214987

WEAR PLATE

Painted

1шт.

3

84217794

STEERING KNUCKLE

30 Inch Left Painted For 36/30, 32/30

1шт.

3

84217795

STEERING KNUCKLE

22 Inch Left Painted For 36/22

1шт.

3

84217796

STEERING KNUCKLE

20 Inch Left Painted For 36/20

1шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

84215008

GROOVED BUSHING

2.375 X 2 X 1

2шт.

6

87632788

BUSHING

2.50 X 2.0

4шт.

7

84204654

PIN

Steerable Axle

2шт.

8

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

9

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

10

3523

BUSHING

1.25 X 1 X 1

6шт.

11

84208578

STEERING CYLINDER

2шт.

12

87023161

HEADED PIN,1" x 3"

4шт.

13

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

14

87041

COTTER PIN,1/4" x 1 3/4"

4шт.

15

84209651

STEERING KNUCKLE

30 Inch Right Painted For 36/30, 32/30

1шт.

15

84209653

STEERING KNUCKLE

22 Inch Right Painted For 36/22

1шт.

15

84209654

STEERING KNUCKLE

20 Inch Right Painted For 36/20

1шт.

16

97772C1

BUSHING

Tension

4шт.

17

84212999

TIE-ROD

Adjustable

1шт.

18

84305894

TIE-ROD

30 Inch Painted For 36/30, 32/30

1шт.

18

84305895

TIE-ROD

22 Inch Painted For 36/22

1шт.

18

84305896

TIE-ROD

20 Inch Painted For 36/20

1шт.

19

280490

NUT,1 1/4"-12, G5

1шт.

20

84219275

PIN

25.4 X 62

2шт.

21

87019495

SNAP RING,#98, Ext

4шт.

22

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

4шт.

23

84211569

SUPPORT

Potentiometer Painted

1шт.

24

280826

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

2шт.

25

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

404202A1

SENSOR

Tool Bar Position

1шт.

27

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

28

80682

LOCK WASHER,1/4"

2шт.

29

84219374

THREADED ROD

Adjustment

1шт.

30

A10329

BALL JOINT,1/4" - 28 x 1"

1/4

2шт.

31

86509309

NUT,1/4"-28, G5

2шт.

32

84215729

SHIELD

Potentiometer Arm Painted

1шт.

33

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

34

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

35

84230339

SUPPORT

Cylinder Top

2шт.

36

86979987

HEADED PIN,1/2" x 3", G5

2шт.

37

86629239

COTTER PIN,Int, 5/16" x .177

2шт.

38

413671A1

WARNING DECAL

Crush Hazard

2шт.

39

87502038

CABLE TIE

3шт.
