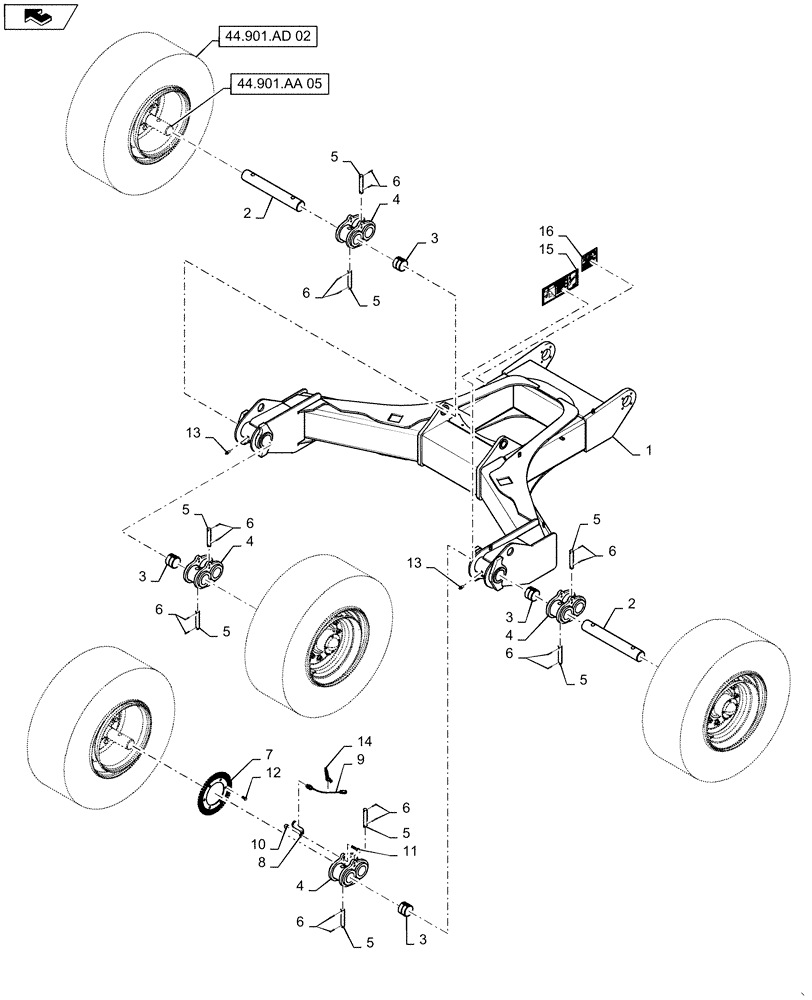

Запчасти Case IH 1265 (44.901.AA[04]) - HIGH FLOAT CARRIER (44) - WHEELS

1

84227934

FRAME

High Float Carrier 30 Inch Painted For 36/30, 32/30 Incl Decals

1шт.

1

84227933

FRAME

High Float Carrier 22 Inch Painted For 36/22 Incl Decals

1шт.

1

84227931

FRAME

High Float Carrier 20 Inch Painted For 36/20 Incl Decals

1шт.

2

87740596

SHAFT

Axle 76.2 X 544.8mm For 36/30, 32/30

2шт.

2

87723383

SHAFT

Axle 76.2 X 910mm For 36/22

2шт.

2

87740597

SHAFT

Axle 76.2 X 798.8mm For 36/20

2шт.

3

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

3.25 X 3 X 2.5 mm

4шт.

4

87753670

SUPPORT

Walk Beam Painted

4шт.

5

87693681

LOCK PIN

Axle Shaft 1 Inch

8шт.

6

47390041

COILED PIN

.250 X 1.50

16шт.

7

84199319

SPROCKET

50 Tooth Painted

1шт.

8

87494821

BRACKET

Sensor Mount

1шт.

9

324049A1

SENSOR

Hall Effect Zero Speed

1шт.

10

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

11

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

6шт.

13

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

14

87502038

CABLE TIE

Small

1шт.

15

413671A1

WARNING DECAL

Crush Hazard Cylinder

2шт.

16

87588036

DECAL

Transport Crush Hazard

2шт.
