(39.100.18[02]) - FRAME - VACUUM DELIVERY OUTERWING

Запчасти Case IH 1260 (39.100.18[02]) - FRAME - VACUUM DELIVERY OUTERWING (39) - FRAMES AND BALLASTING

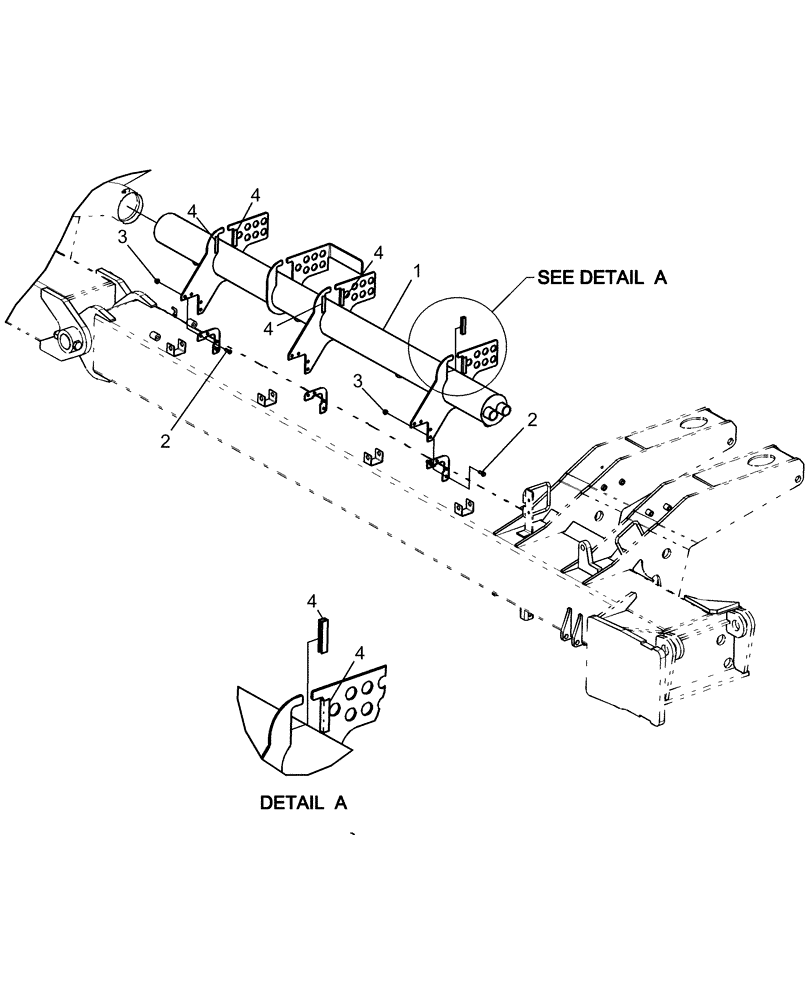

Схема запчастей Case IH 1260 - (39.100.18[02]) - FRAME - VACUUM DELIVERY OUTERWING (39) - FRAMES AND BALLASTING
1
2
4
4
3
4
4
3
4
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84214939

DUCT

Vacuum Outlet With Decal LH

1шт.

1

84214970

DUCT

Vacuum Outlet With Decal RH

1шт.

Not Shown

1шт.

2

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

4шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

4

1330108CX

SEAL,304.8mm L

6шт.

Cut to 84 mm

1шт.
