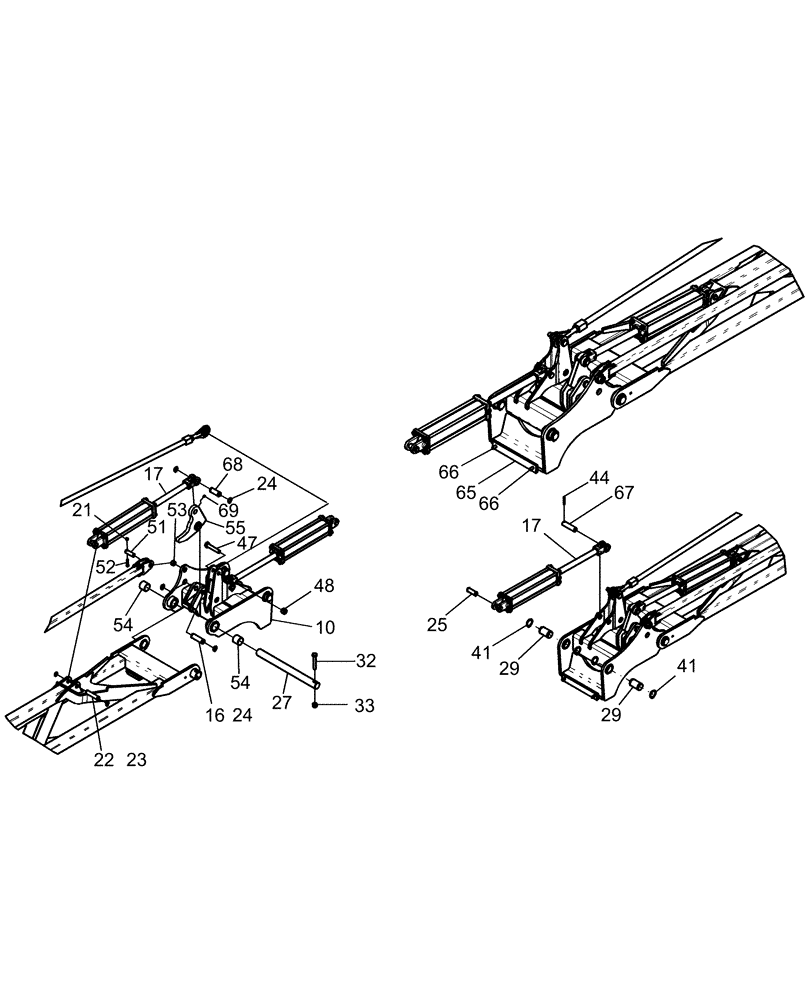

Запчасти Case IH 1260 (39.100.15[03]) - FRAME - MARKER, RT ASSEMBLY (39) - FRAMES AND BALLASTING

10

84283547

KNUCKLE

ASSY. Marker, Inner RH

1шт.

16

84194685

PIN

31.75 mm x 95 mm ul

1шт.

17

84282604

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 1/2" x 16", Nitro

2шт.

21

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

14шт.

22

87420397

PIN,25.4mm OD x 122mm L

1" x 4 3/16" ul

1шт.

23

87019495

SNAP RING,#98, Ext

2шт.

24

86625148

SNAP RING,#125, Ext

4шт.

25

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

1шт.

27

87735017

PIN

50.8 mm x 594 mm fl

1шт.

29

87735022

PIN

50.8 x 69.5 mm

2шт.

32

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3шт.

33

280375

NUT,3/4"-10, GC

7шт.

41

103-16200

SNAP RING,#200, Ext

4шт.

44

87635861

ROLL PIN

3/8" x 2 1/2"

2шт.

47

426-1472

BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8

2шт.

48

280658

NUT,7/8"-9, GB

2шт.

51

84276533

PIN

25.4 mm x 79 mm fl

4шт.

53

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

4шт.

54

87686077

BUSHING

composite 2 1/4" x 2" x 2" long

2шт.

55

84283611

LINKAGE

Float Marker

1шт.

65

84271701

SUPPORT

Marker Wear

1шт.

66

86512179

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/2"

2шт.

67

87687202

PIN

31.75 mm x 120 fl

1шт.

68

84282947

PIN

31.75 mm x 95 mm ul

1шт.

69

87414

LUBE NIPPLE,1/4" - 28

1шт.
