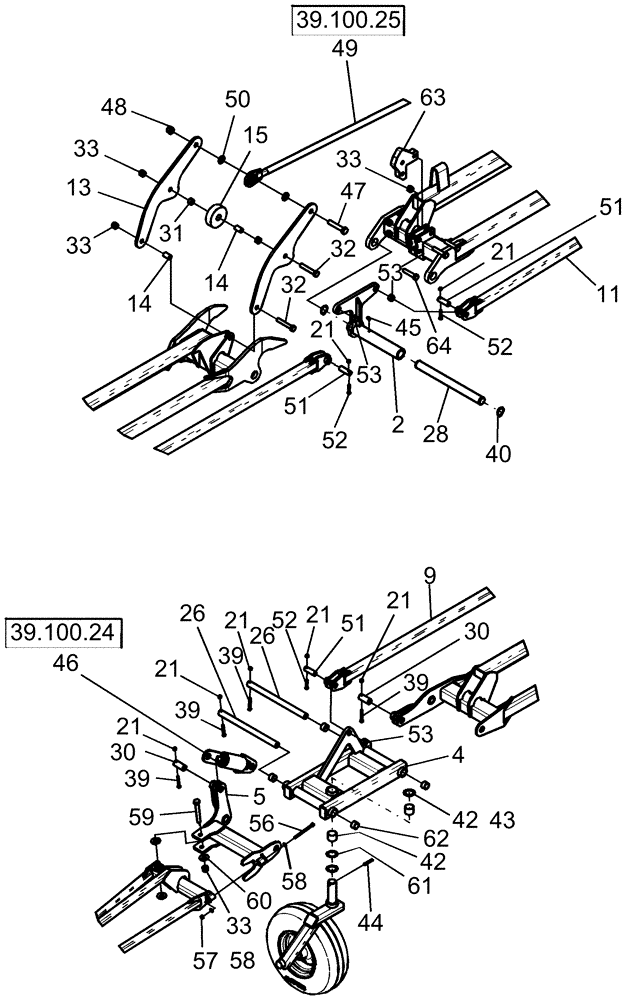

Запчасти Case IH 1260 (39.100.15[02]) - FRAME - MARKER, RT ASSEMBLY (39) - FRAMES AND BALLASTING

2

87735027

IDLER

Assembly, Marker

1шт.

4

84227750

FRAME

Marker Knuckle RH

1шт.

5

84283554

FRAME

Outer Breakaway, RH

1шт.

9

87486580

FRAME

80' and 90 Link, Outer

1шт.

9

87481529

FRAME

60' and 66' Link, Outer

1шт.

Not Shown

1шт.

11

87486579

FRAME

80' and 90' Link, Inner

1шт.

11

87481532

FRAME

60' and 66' Inner Link

1шт.

Not Shown

1шт.

13

84273914

LINKAGE

Connecting

2шт.

14

87486584

SPACER

25.4 mm od x 19.3 mm id x 42 mm long

2шт.

15

87486586

ROLLER

127 mm od x 40 mm Wide

1шт.

21

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

14шт.

26

87735019

PIN

31.75 mm x 454.3 mm fl

2шт.

28

87735018

PIN

44.45 mm x 493.6 mm ul

1шт.

30

84282867

PIN

31.75 mm x 74 mm fl

2шт.

31

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

2шт.

32

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

3шт.

33

280375

NUT,3/4"-10, GC

7шт.

39

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

4шт.

40

86625149

SNAP RING,#175, Ext

2шт.

42

21701

BUSHING

Iglide 1 15/16" x 1 3/4" x 1 1/2"

2шт.

43

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

1шт.

44

87635861

ROLL PIN

3/8" x 2 1/2"

2шт.

45

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

46

NSS

NOT SOLD SEPARAT

1шт.

See Figure 39.100.24

1шт.

47

426-1472

BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8

2шт.

48

280658

NUT,7/8"-9, GB

2шт.

49

NSS

NOT SOLD SEPARAT

1шт.

See Figure 39.100.25

1шт.

51

84276533

PIN

25.4 mm x 79 mm fl

4шт.

52

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

53

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

4шт.

56

280888

BOLT,Hex, 3/8" - 24 x 5 1/2", Gr 5

3/8"-24 x 5 1/2", G5

1шт.

57

86509310

NUT,3/8" - 24, Gr 5

1шт.

58

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

59

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

1шт.

60

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

61

21590

WASHER,44.45mm ID x 63.5mm OD x 0.76mm Thk

1 3/4" id x 2 1/2" od x .03" hardened

2шт.

62

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

4шт.

63

84270951

SUPPORT

Marker Cam

1шт.

64

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

3шт.
