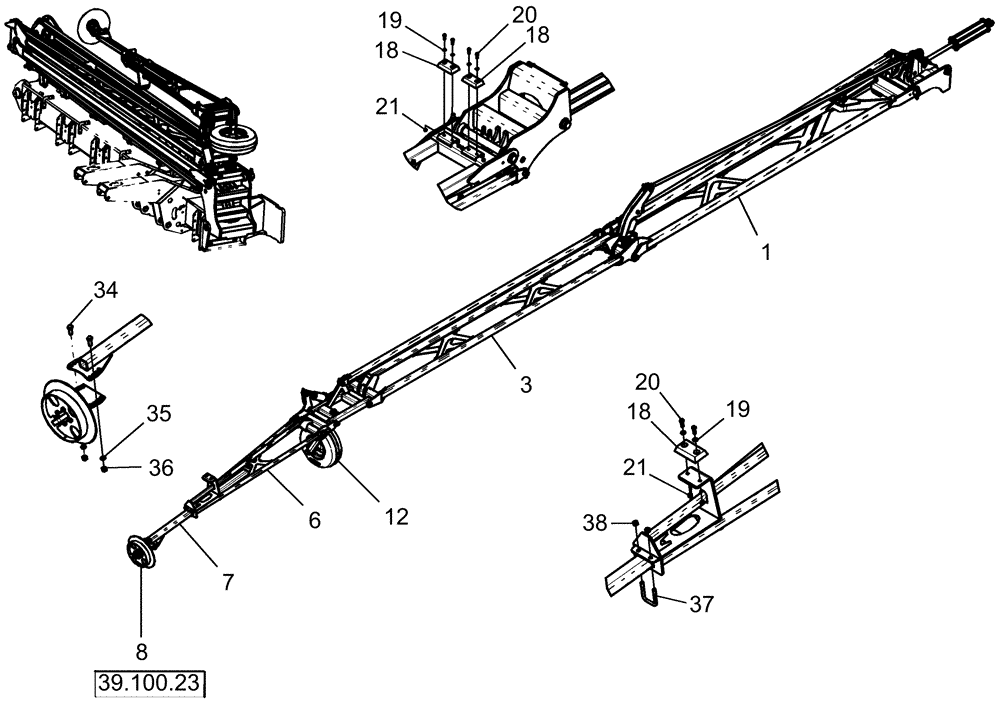

Запчасти Case IH 1260 (39.100.15[01]) - FRAME - MARKER, RT ASSEMBLY (39) - FRAMES AND BALLASTING

1

84156366

FRAME

80' and 90' Marker, Inner RH

1шт.

1

87691219

FRAME

60' and 66' Marker, Inner RH

1шт.

Not Shown

1шт.

3

87691220

FRAME

66' Marker, Middle RH

1шт.

3

84156363

FRAME

80' and 90' Marker, Mid RH

1шт.

6

84283567

FRAME

90' Marker, Outer RH

1шт.

6

84283556

FRAME

66/80 Marker, Outer RH

1шт.

Not Shown

1шт.

6

84283563

FRAME

60' Marker, Outer RH

1шт.

Not Shown

1шт.

7

87486578

FRAME

Marker Extension

1шт.

7

87543302

ARM

marker extension

1шт.

Not Shown

1шт.

60'

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

See Figure 39.100.23

1шт.

18

87505918

BUMPER

rubber, marker

3шт.

19

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

20

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

21

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

14шт.

34

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

35

12034871

WASHER

5/8"

2шт.

36

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

37

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

38

280431

NUT,1/2"-13, G5

2шт.
