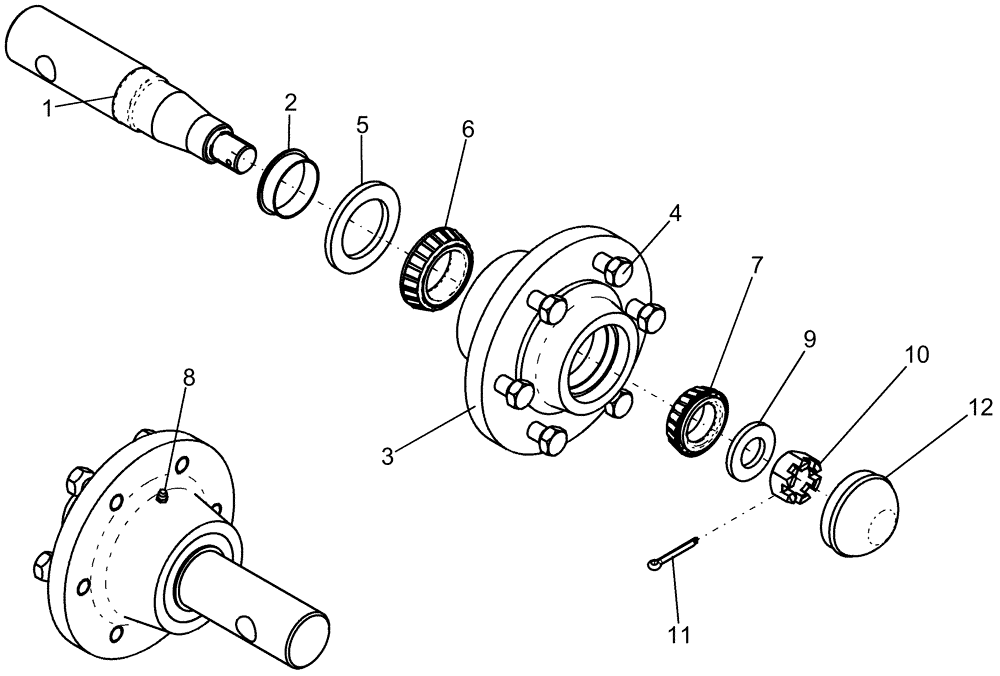

Запчасти Case IH 1260 (39.100.11) - FRAME - WING WHEEL, HUB (39) - FRAMES AND BALLASTING

1

84156691

SPINDLE

S614 X 256

1шт.

2

51200202

SLEEVE

wear, spindle S614/S811

1шт.

3

87505492

HUB

H615-1 assembly with cups and bolts, Model Year 2010 And Before

1шт.

3

84336238

HUB

Assembly With Cups And Bolts, Model Year 2011

1шт.

4

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

Model Year 2010 And Before

6шт.

4

1016176

STEP BOLT

Model Year 2011 And After

6шт.

5

3685

OIL SEAL

triple lip - h615 hub

1шт.

6

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

1шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

1шт.

10

86020752

SLOTTED NUT

1"-14, G5

1шт.

11

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

12

51200086

HUB CAP

dc15 h614

1шт.

13

1016177

WHEEL NUT

Hub Studs, (Not Shown)

12шт.
