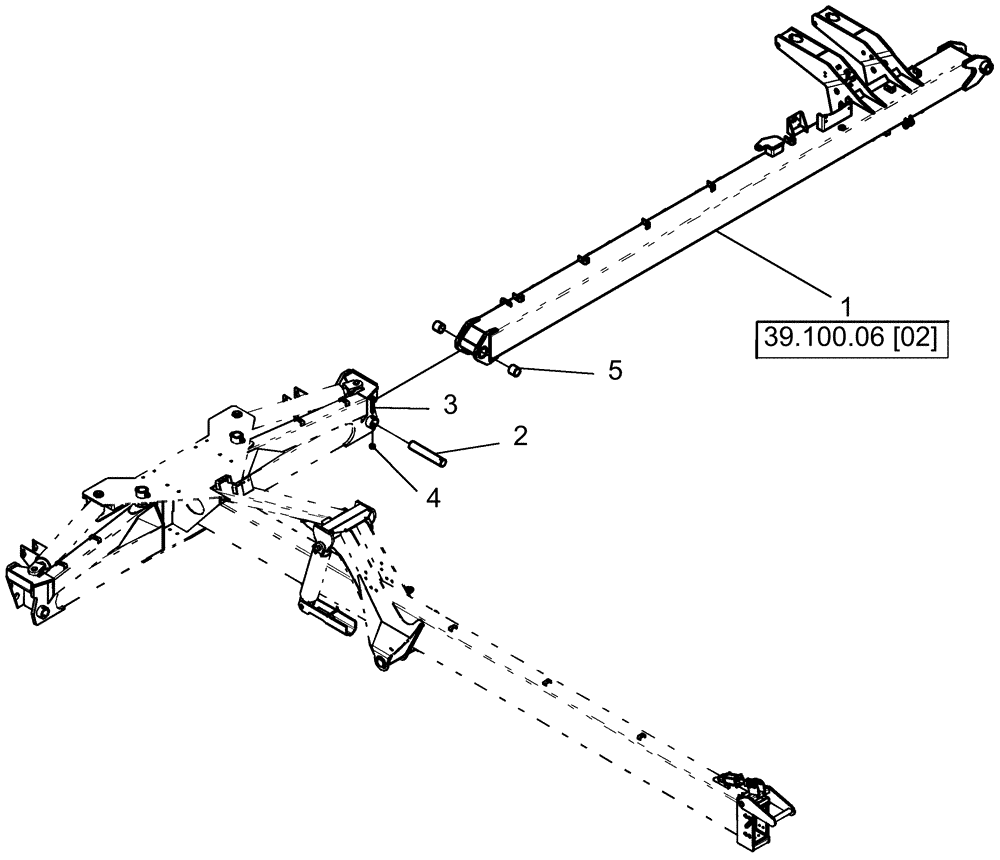

Запчасти Case IH 1260 (39.100.06[01]) - FRAME - MIDDLE WING (39) - FRAMES AND BALLASTING

1

84205528

FRAME

Mid Wing With Decal LH

1шт.

1

84205529

FRAME

Mid Wing With Decal RH

1шт.

Not Shown

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME middle wing 80' LT

1шт.

Not Shown

1шт.

See Figure 39.100.06 [02]

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME middle wing 80' RT

1шт.

Not Shown

1шт.

See Figure 39.100.06 [02]

1шт.

2

87695477

PIN

pivot wing, 76.2 mm x 416 mm chrome

1шт.

3

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

1шт.

4

280286

NUT,1"-8, GB

1шт.

5

87503180

BUSHING

polylube 3" x 3 1/2" x 3"

2шт.
