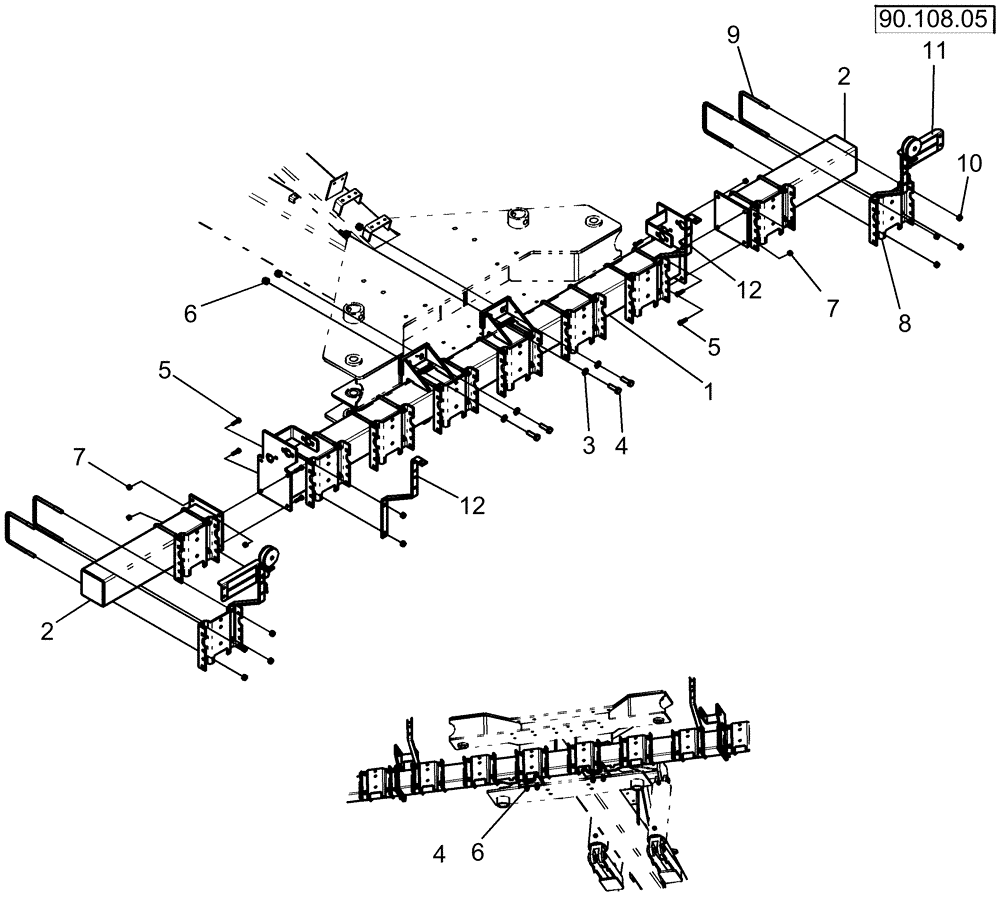

Запчасти Case IH 1260 (39.100.04[03]) - FRAME - SUB BAR 20" (39) - FRAMES AND BALLASTING

1

87484777

FRAME

20" sub bar

1шт.

2

84176436

FRAME

20" sub bar ext assembly

2шт.

3

86632591

WASHER,0.81" ID x 1.5" OD x 0.13" Thk

4шт.

4

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

8шт.

5

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

6

280375

NUT,3/4"-10, GC

8шт.

7

87333862

NUT

1/2"-13, GB

8шт.

8

141728C5

BRACKET

channel head

10шт.

9

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

20шт.

10

280374

NUT,Hex, 5/8" - 11, Gr 5

40шт.

11

NSS

NOT SOLD SEPARAT

1шт.

See Figure 90.108.05

1шт.

12

84145639

BRACKET

warning light mount

2шт.
