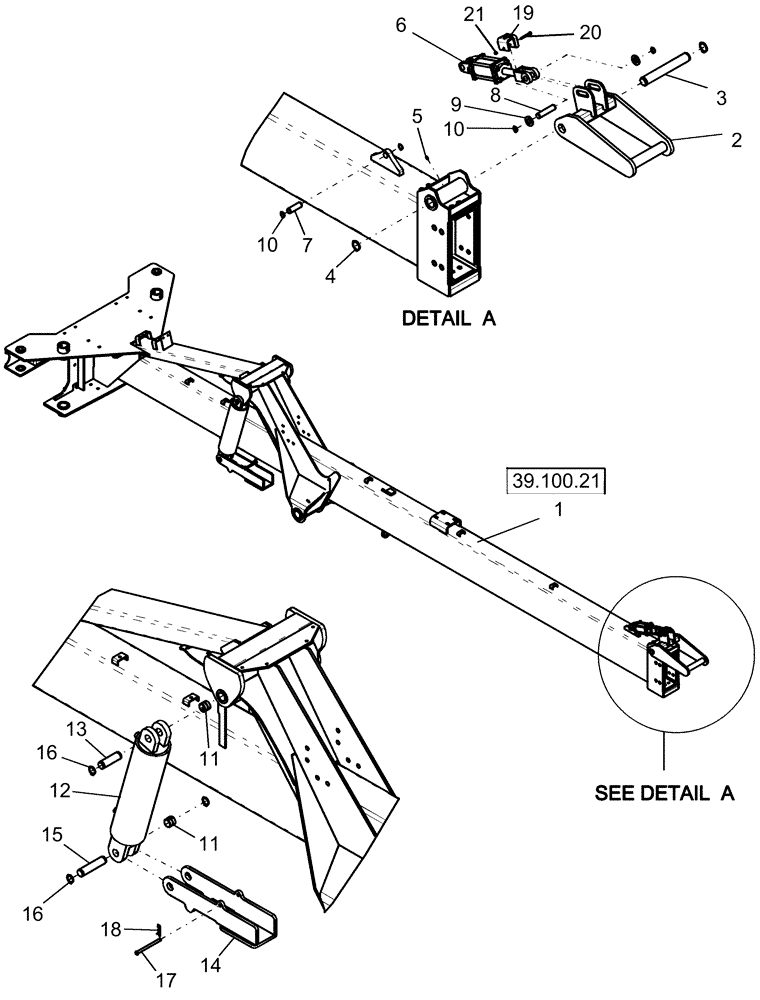

Запчасти Case IH 1260 (39.100.03[01]) - FRAME - OUTER HITCH (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

1шт.

See Figure 39.100.21

1шт.

2

87485054

LATCH

outer hitch

1шт.

3

87477223

HITCH PIN

lock pivot

1шт.

4

86625149

SNAP RING,#175, Ext

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

87671044

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 76.2mm Stroke

3" x 4"

1шт.

7

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

1шт.

8

87483402

PIN

cylinder, 1" x 4 9/16" ul

1шт.

9

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

2шт.

10

87019495

SNAP RING,#98, Ext

4шт.

11

7825

GROOVED BUSHING

tension 1 3/4" x 1 1/2" x 1 1/2" long

4шт.

12

87671035

HYDRAULIC CYLINDER,Double Acting, 505.968mm Stroke

6 1/4" x 19.92" phase

2шт.

13

87725629

PIN

38.1 mm x 80 mm ul

2шт.

14

84177557

SUPPORT

carrier cylinder

2шт.

15

87475138

PIN

38.1 mm x 160 mm ul

2шт.

16

86632531

SNAP RING,#150, Ext

8шт.

17

439-18104

HEADED PIN,1/2" x 6 1/2"

2шт.

18

136-163

HAIR PIN COTTER,Int, 5/16" x .177

2шт.

19

84216996

STOP LOCK

hitch

1шт.

20

136-163

HAIR PIN COTTER,Int, 5/16" x .177

1шт.

21

280129

NUT,1/4"-20

1шт.
